In/Outputs Menu

The In/Outputs menu consists of the following entries:

Input Properties

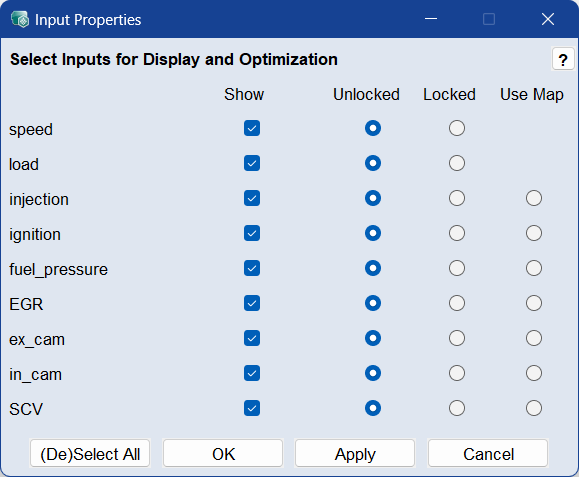

Opens the ClosedInput Properties window where you can select the inputs to be displayed and included in the optimization.

Select Outputs

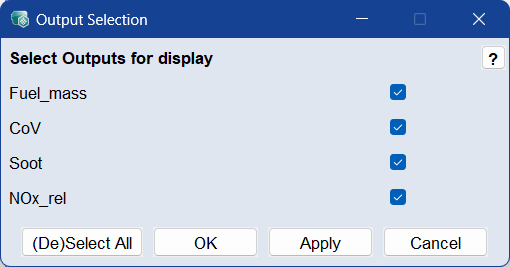

Opens the ClosedOutput Selection window where you can select the outputs to be included in the model training, transformation, etc.

Delete Outputs

Note

Deleting an output cannot be undone. Use this function with care.

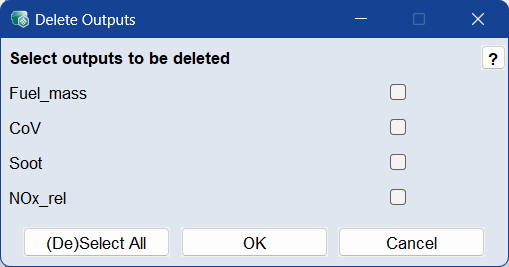

Opens the ClosedDelete Outputs window where you can select outputs to be excluded from modeling.

Set Operating Point Axes

Opens the OP-Axes window where you can select the inputs you want to use as operating point axes.

Hull on Inputs

Opens the Configure Convex Hull on Inputs window where you can set up the hull(s) you want to use.

Add Calculated Output

Opens the Add Calculated Output window where you can add an additional output that is calculated from existing inputs and outputs. This output is displayed in the ISP view and is a component of the project dataset.

ClosedExamples

  • calcOutput_1 = %Fuel_mass%_sigma

    Returns the sigma of the Fuel_mass output as variable.

  • calcOutput_2 = %Fuel_mass%_grad(3)

    Returns the 3rd gradient of the Fuel_mass output as variable.

Link Inputs

Note

The Link Inputs menu option is only available if you have activated the Advanced Settings. We recommend to restart ASCMO-STATIC after activating the advanced settings.

Opens the Linked Inputs window where you can determine a condition for each input where that input does not influence the outputs.

ClosedExample

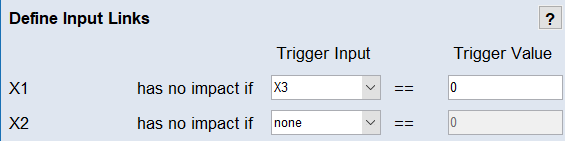

X1 has no impact if X3 == 0

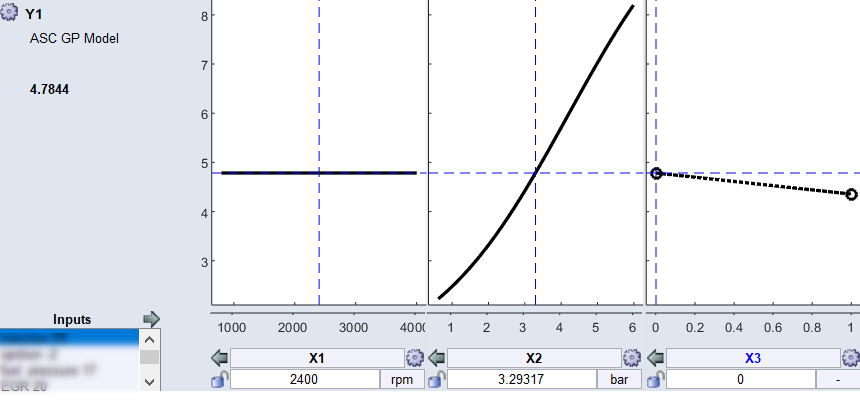

In the ISP view, you can see that, at X3 = 0, X1 has no more influence on the outputs.

2D Plot Operating Points

Opens the Operating Points Manager window.

2D Plot Inputs

Opens the Select Axes window where you can select axes pairs for 2D plots and show the plots.

3D Plot Outputs

Opens the Select Inputs/Outputs for 3D Plots window where you can select axes triplets for 3D plots and show the plots.
