Configure Convex Hull on Inputs
In/Outputs menu >Hull on Inputs
Or
In the optimization windows: Hull (2D) button.
The Convex Hull on Inputs is a bound around the training data. This bound can be considered in the optimization, so that optimization results stay inside the range of the training data.

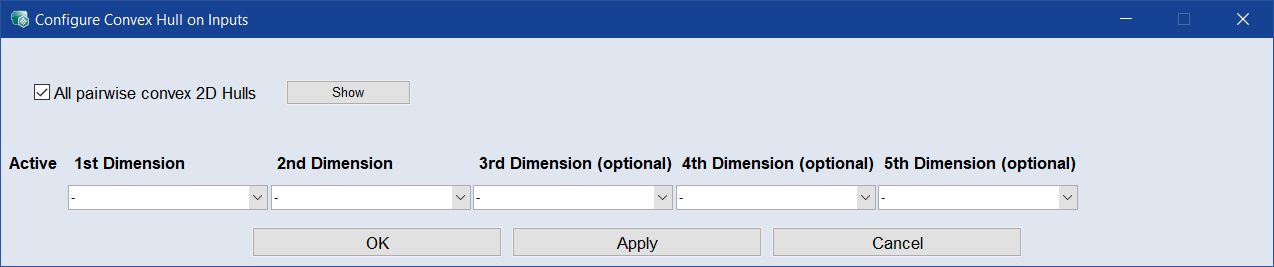

The Configure Convex Hull on Inputs window contains the following elements:
All pairwise convex 2D-Hulls checkbox

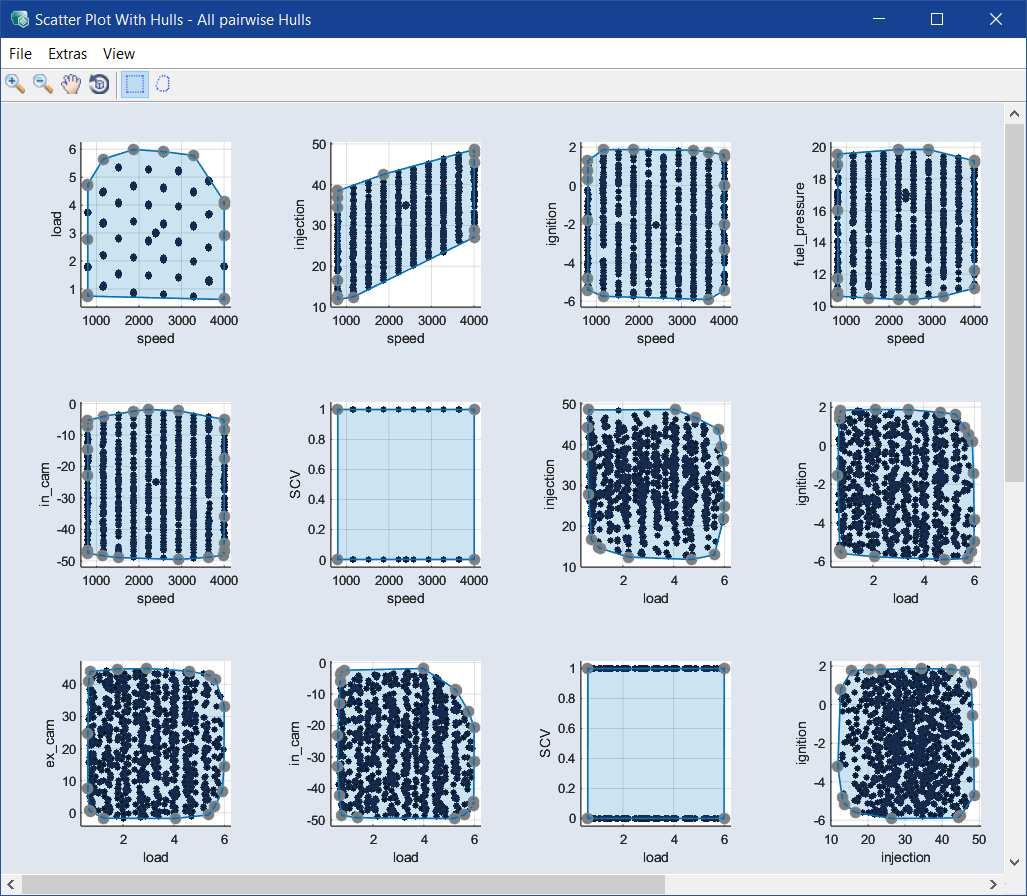

If activated (default), 2D hulls for all input pairs are used. The Show button next to the checkbox opens a
scatter plot window that shows all pairwise 2D hulls.
Table area
This area allows the specification of user-defined hulls.
|
Column |
Meaning |
||
|---|---|---|---|
|
Active |
The checkboxes activate/deactivate the hulls. Invisible until the first dimension is selected. |
||
|
1st Dimension |
You must select at least two dimensions to define a hull. A third and/or fourth dimension are optional. Each drop-down list offers all inputs for selection, and a "-" to leave out inputs for the respective dimension.
|
||
|
2nd Dimension |
|||
|
3rd Dimension (optional) |
|||
|
4th Dimension (optional) |
|||
|
5th Dimension (optional) |
|||
|
|
Deletes the respective hull. Invisible until the first dimension is selected. |
||
|
|

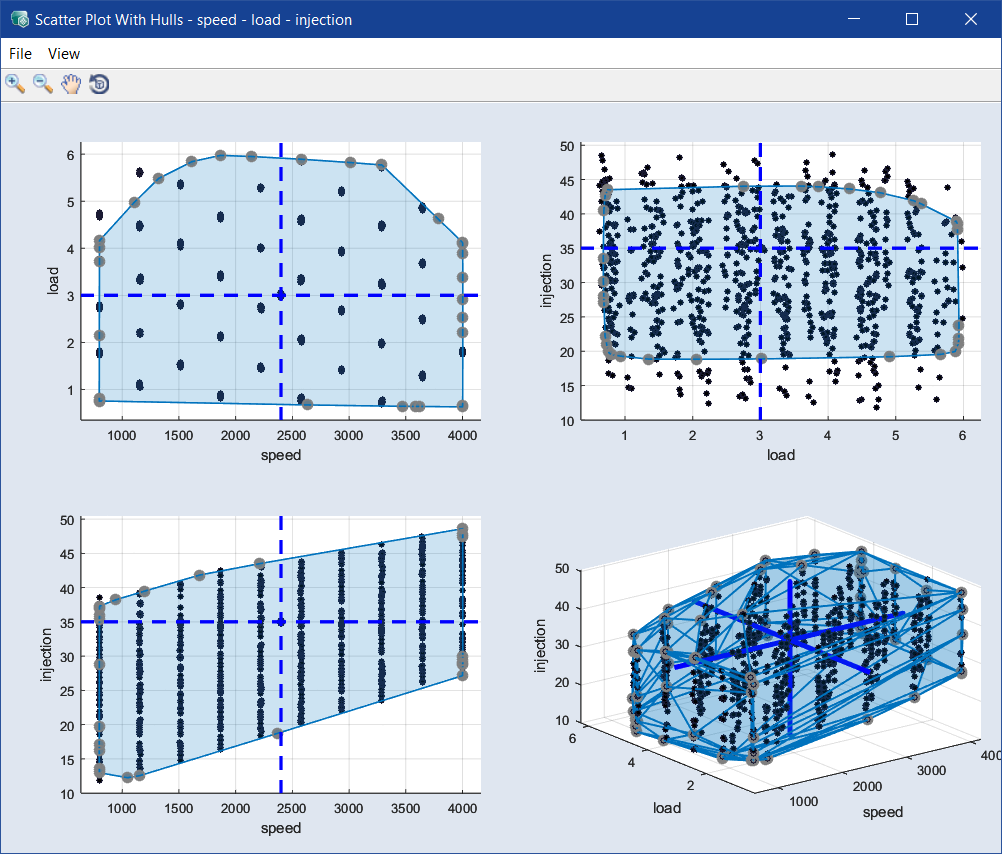

Opens a Invisible until the first dimension is selected. |
A new empty row appears when the first dimension is selected in a row.
A row disappears if you click its
button, or if you deselect the last input.
OK
Applies your settings and closes the window.
Apply
Applies your settings, but does not close the window.
Cancel
Discards your settings and closes the window.
