OP-Axis
In/Outputs menu > Set Operating Point Axes

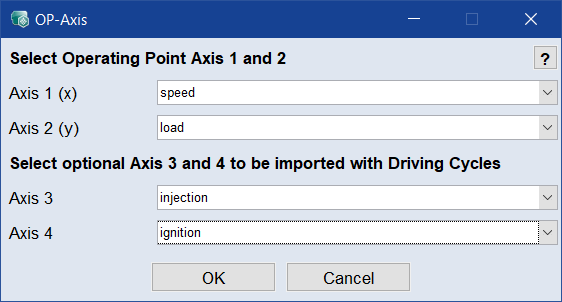

The OP-Axis window is used to select the inputs you want to use as operating point axes.
The OP-Axis window contains the following elements:
Axis 1 (x)
This drop-down list shows all inputs. Select the one you want to use as first (x) operating point axis.
Axis 2 (y)
This drop-down list shows all inputs. Select the one you want to use as second (y) operating point axis.
|
Note |
|---|
|
Axis 3 and Axis 4 are optional. They are only shown in the table of the Driving Cycle Manager and not considered any further in ETAS ASCMO. Axis 3 and Axis 4 will be used when you export an optimization problem to ASCMO-MOCA (see also Export Optimization Problem to MOCA (ASCMO-STATIC) or Optimization Menu). |
Axis 3
This drop-down list shows all inputs. Select the one you want to use as third operating point axis.
Axis 4
|
Note |
|---|
|
Only editable if an input has been selected for Axis 3. |
This drop-down list shows all inputs. Select the one you want to use as fourth operating point axis.
OK
Applies your settings and closes the window.
Cancel
Discards your settings and closes the window.
