Step 9: Export

NOTICE

Damage due to wrong test plan

Wrong engine settings in ASCMO-STATIC ExpeDes/ASCMO-DYNAMIC ExpeDes can lead to engine or test bench damage. Example: the operation point overstresses the engine and causes damage, e.g. by setting an ignition angle that causes extensive knocking.

  • The general settings for the test plan must fit the system and the object. Negative example: 10000 rpm are set in the test plan vs. the motor has max. 6000 rpm.

  • Limit the operation points to the allowed values. ETAS ASCMO does not have any knowledge about the engine parameters.

  • Limit the engine load in the general settings before exporting the test plan.

  • Verify the test plan for further use.

For ASCMO-STATIC ExpeDes see Step 9: Export and Step 1: General Settings.

For ASCMO-DYNAMIC ExpeDes see Step 8: Export and Step 1: General Settings.

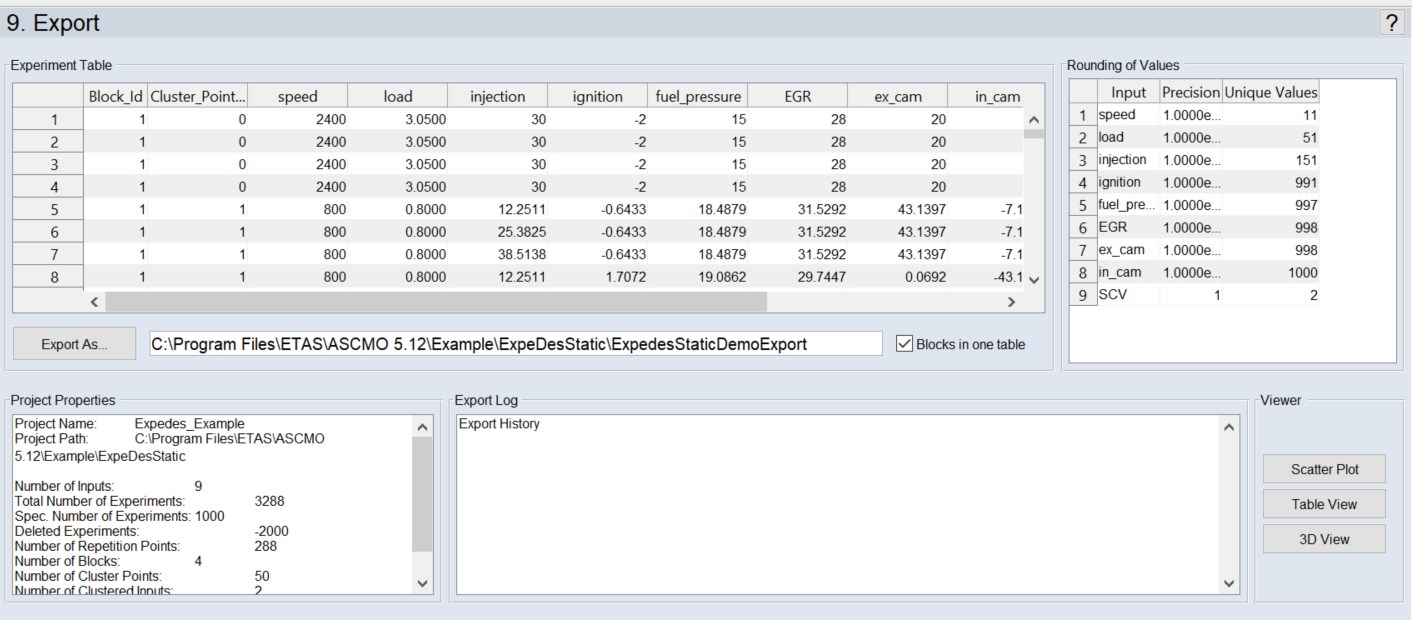

In this step, the properties of the project and the experiment plan itself are displayed. You can export the data in *.xlsx, *.xls or *.csv format. In addition, you can display the data as scatter plots, 3D plots or as a table; see Visualizing the Experiment Plan for details.

Changing the rounding of values

In the Rounding of Values area, you specify the precision with which the relevant value can be set (e.g. the speed at an engine test bench).

  • In the Rounding of Values area, click in the Precision column of the input you want to edit.

    The cell becomes an input field.

  • Enter the desired precision value.

Exporting the plan

  • In the Experiment Table area, click Export As.

    A file selection window opens.

  • Select the export file type.

    Available formats are *.xlsx, *.xls and *.csv.

  • Enter or select path and file name for the export file.

    An existing file will be overwritten without warning.

  • Click Save.

    Or

  • Click Export to export the plan using the most recently selected path, file name, and format.
  • The plan is exported according to your settings.
Experiment Table Area

The complete experiment plan is displayed here as it has been created by ASCMO-STATIC ExpeDes according to the settings that were performed in preceding steps.

Project Properties Area

In the left field of the Project Properties area, the properties of the project and the experiment table are displayed.

In the right field of the Project Properties area, the export history of the experiment table is displayed.
