Data Based Modelling Step

Note

To use this step you need an ASCMO-DYNAMIC license.

The Modelling step contains the following elements:

Model table

Lists the names and modelling methods of the models.

To select the modelling method, use the drop-down list in the Modelling Method column.

Add Model

Adds a new entry to the model table.

Rename

Opens a window, where you can rename the selected model.

Delete Models

Deletes selected models selected in the table from the project. You can use the standard Ctrl/Shift selection functions in the table, or click and hold Lmb and drag the cursor over the cells/rows you want to select.



To set the properties of a model, select it from the table, select the modeling method, and make the settings in the bottom section. Depending on the modelling method selected, you can set different Model Properties.

Inputs

You must select at least one input.

To select inputs for the model, click the Select Inputs button.

In the opened window. select the desired inputs from the list and confirm with OK.

You can use the standard Ctrl/Shift selection functions in the table, or click and hold Lmb and drag the cursor over the cells/rows you want to select.

Output

You must select one output.

To select an output for the model, click the Select Output button.

In the opened window. select the desired output from the list and confirm with OK.

Training Datasets

You must select at least one training dataset.

To select training datasets for the model, click the Select Training Datasets button.

In the opened window. select the desired datasets as training datasets from the list and confirm with OK.

You can use the standard Ctrl/Shift selection functions in the table, or click and hold Lmb and drag the cursor over the cells/rows you want to select.

Validation Datasets

Selecting a validation dataset is optional.

To select training datasets for the model, click the Select Training Datasets button.

In the opened window. select the desired datasets as training datasets from the list and confirm with OK.

You can use the standard Ctrl/Shift selection functions in the table, or click and hold Lmb and drag the cursor over the cells/rows you want to select.

To clear the list of validation datasets, use the Clear button.

Model Properties

Model Type

Select the model type you want to use.

See NARX Model Types for further information on the model types and their settings.

Model Properties

The Edit button opens the <output> Parameters window for the selected model type.

See NARX Model Types for more information about the model properties.

Feedback Structure

  • Min/Max Time Lag

    Enter the minimum and maximum time lag for all inputs and outputs to be considered within the NARX structure. The feedback values are also called features.

    The results of the IACF analysis (see Phase Plot and ACF/IACF Outputs) usually serve as a good starting point.

  • Initial States

    Opens the Initial State of NARX Values window, where you can make settings for the initial states of NARX values. For more information on initial NARX values, see Initial NARX Values.

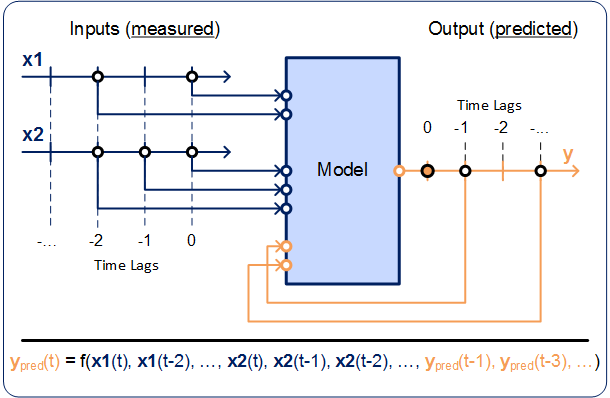

Inputs/Output

The Inputs table contains one row per input. The Output table contains one row for the output you are currently working on.

Each table contains one column for each possible time lag. An activated checkbox in a table cell means that the respective feature is selected.

Training Labels

Assign the labels you want to train the model on. If you use multiple labels, all data associated with at least one of the labels is used.

Assign a label by double-clicking the field and typing the name. Select the dataset from the list of suggestions.

Use the x on the label or Del to remove the label.

Validation Labels

Assign the labels of the data you want to use as validation data. If you use multiple labels, all data associated with at least one of the labels is used.

Assign a label by double-clicking the field and typing the name. Select the dataset from the list of suggestions.

Use the x on the label or Del to remove the label.

Note

If the validation labels are not assigned to any data, the model is trained without validation. A message appears in the log window. You can assign labels to data in the Manage Datasets window.

Network Layout

Layer Type

Select the type of network cells. See, Model Predictions with Recurrent Neural Networks (RNN).

Number of Layers

Enter the number of layers. Depending on the number of layers, corresponding Cell Memory Size input fields are generated.

Cell Memory Size

Enter the cell memory size per node of the neural network. Typical value range is [5, 20]. The actual memory size depends on the cell type.

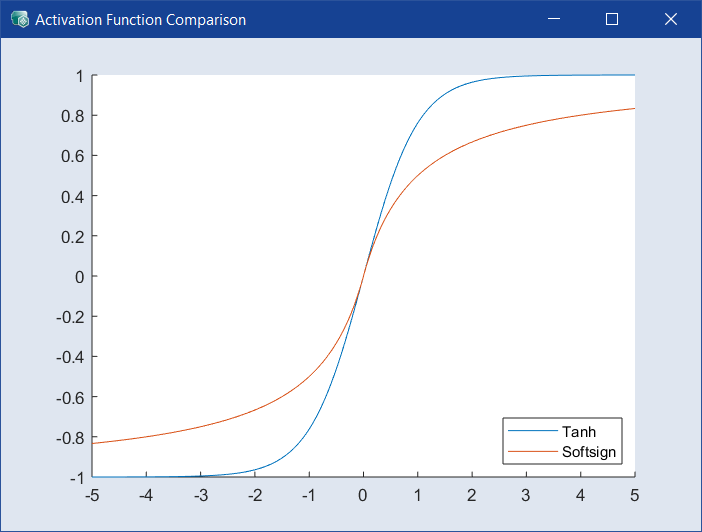

Activation Function

Select the activation function for all layers. Default is Tanh, a different function may be less accurate but more efficient to calculate. Click to the right of the drop-down to open the ClosedActivation Function Comparison window.

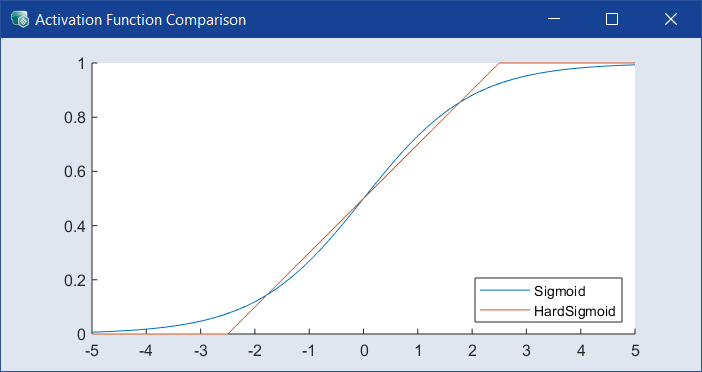

Recurrent Activation Function

Select the recurrent activation function for all layers. Default is Sigmoid, a different function my be less accurate but more efficient to calculate. Click to the right of the drop-down to open the ClosedActivation Function Comparison window.

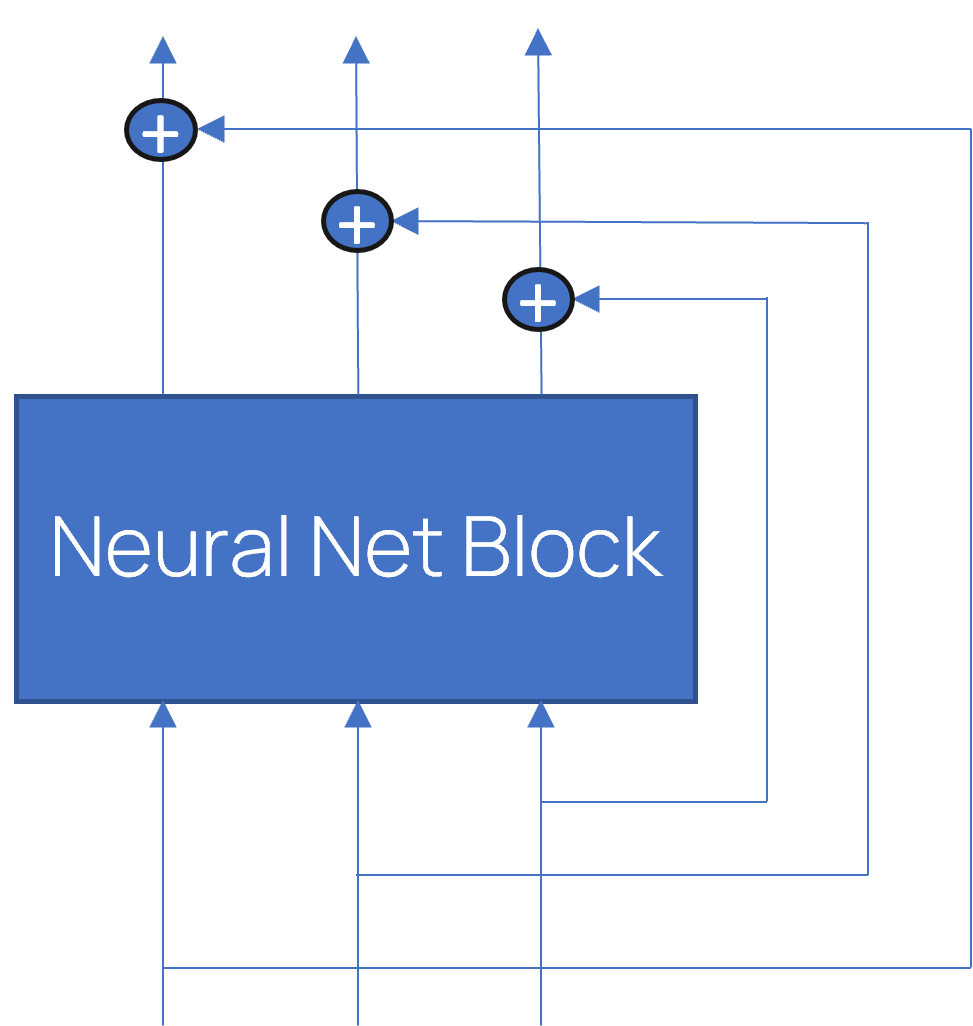

Use Skip Connections

Activate to add the input of the layer to its output.

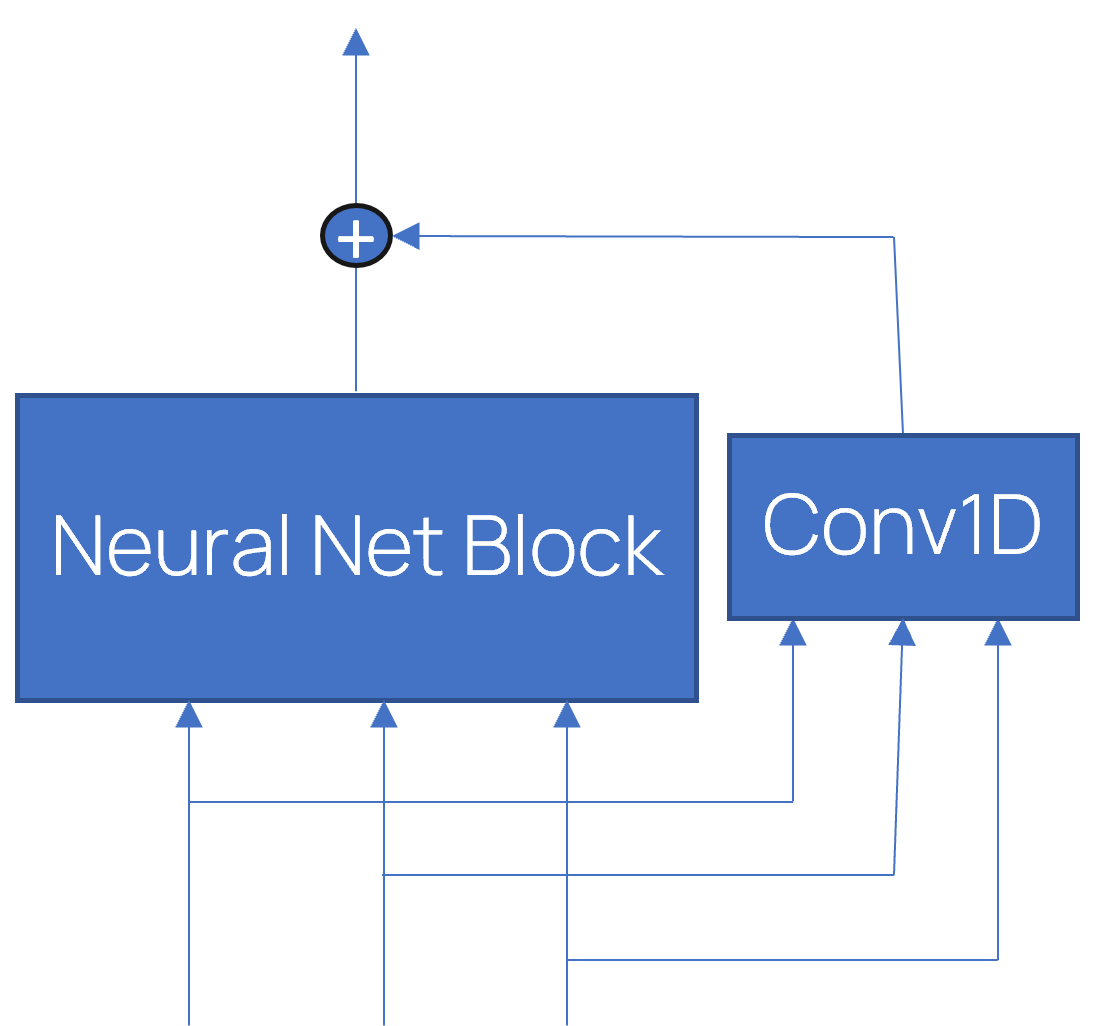

If the input and output sizes do not match, the input is processed by an additional convolutional layer before being added to the output. Skip connections have been shown to simplify training and improve network performance by allowing the flow of information to skip selected layers.

ClosedMore information

Number of Network Parameters

Dynamically shows the number of parameters used by the model training for current settings (including potential initialization network).

Output Properties

Output Transformation

Select the transformation type of the output. Using a transformation can improve the model prediction. Not all transformations are available if the training data has negative or zero values.

You can select from the following choices:

  • none: no transformation
  • log(y): logarithm

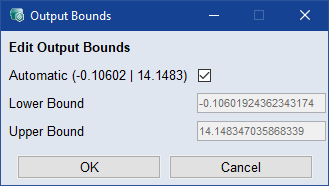

  • Bounded: limited to lower and upper bound

    Click Edit to Closedview the automatically selected bounds or to define the lower and upper bounds manually. To define them manually, deactivate the Automatic checkbox. The bounds must be in the range of the training data.

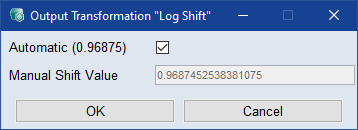

  • log(y+c): logarithm plus constant

    Click Edit to Closedview the automatically selected log shift or to define a manual shift value. To define it manually, deactivate the Automatic checkbox.

Training Properties

Continue Training

Activate the checkbox to continue with existing model training and iterations, if possible, instead of starting a new training. You can change the training properties and continue. The network layout must remain the same. For example, train with a complex activation function, then switch to a more efficient one (for the ECU) and continue training seamlessly. Continue Training works best with the Stochastic Gradient Descent as optimizer (Manual Detailed Training Settings > Optimizer), which is automatically selected when Continue Training is activated.

Number of Multistarts

Enter the number of training repetitions with different starting values. A higher value can improve the model quality, but the model training then takes more time. The default value is 3.

Number of Iterations

Enter the number of iterations to be performed during model training. If the model performance does not improve within 10 iterations on the validation data, the training will be aborted. In deep learning this is often referred to as number of epochs.

Training Loss

Select the type of training loss. Training loss is the criterion that is minimized during model training.

Absolute equals the RMSE calculation:

Relative puts this in relation to the measured value:

Transformed behaves like Absolute, but performs the loss calculation in the transformed space, i.e. it depends on the output transformation.

Lookback Length

Enter the size of sequences into which the data is segmented. The underlying optimizer then gets batches with sequences of this fixed length. The default value is 100.

If the length of the present data is about this number of steps, or less, it is recommended that you reduce the lookback length, even though an optimization with Lookback Length=100 is possible. A smaller value trains faster.

Dropout

Enter a value between 0 and 0.9 as a percentage of neurons to be randomly deactivated during training. That means the weight of the neurons is set to 0 temporarily. This avoids overfitting. The entered value 0 means not activated, 0.1 means 10% of the neurons are set to 0 temporarily. The typical value range is [0, 0.2].

Recurrent Dropout

Enter a value between 0 and 0.9 as a percentage of recurrent state neurons to be deactivated during training. That means the weight of the neurons is set to 0 temporarily. This avoids overfitting. The entered value 0 means not activated, 0.1 means 10% of the neurons are set to 0 temporarily. The typical value range is [0, 0.2].

Recurrent Dropout

Enter a value between 0 and 0.9 as a percentage of recurrent state neurons to be deactivated during training. That means the weight of the neurons is set to 0 temporarily. This avoids overfitting. The entered value 0 means not activated, 0.1 means 10% of the neurons are set to 0 temporarily. The typical value range is [0, 0.2].

Learn Initial States

If this checkbox is activated, the initial state of RNN model is learned based on the input and output values of the first time step, so the initial prediction matches the given output.

When the model is exported, you can define a value as desired initial output.

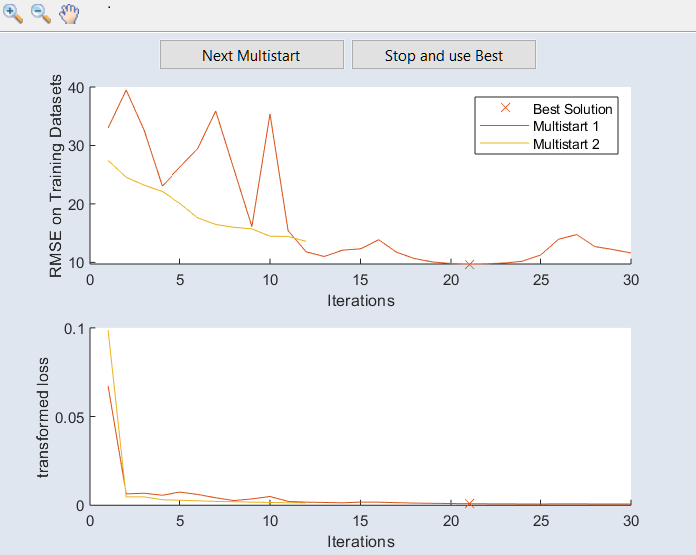

Plot RMSE during Training

Activate if you want the RMSE values for training data and validation data to be Closeddisplayed during model training.

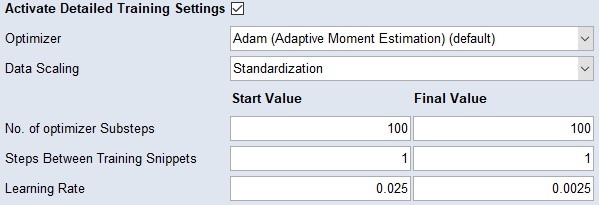

Activate Detailed Training Settings

Activate the checkbox to display the ClosedDetailed Training Settings section.

  • Optimizer

    Select the optimizer used to train the model. If you activate the Continue Training checkbox, it is recommended to select Stochastic Gradient Descent (for continue).

  • Data Scaling

    Select the scaling variant for the model training.

    Before the model training, the training data is scaled internally so that the different input signals are mapped to a similar range. ASCMO-DYNAMIC offers three different scaling types.

    Normalization:

     scaled to an interval of length one contained in [-1, 1].

    Robust Normalization:

    This scaling method is preferable whenever there are outliers in the data.

    Standardization: (Z-Score normalization)

The detailed training settings are adjusted for each iteration. For the first iteration the Start Value is used, for the last iteration the Final Value. The values in between are interpolated.

  • No. of Optimizer Substeps

    Determines how many sequences of length Lookback Length are used for one optimizer update. The default value is 100, which is the batch size used in deep learning. The larger the value, the smaller the batch size and vice versa. If the number is small, the optimizer step is performed less frequently and the training is therefore faster.

  • Steps Between Training Snippets

    Set the steps between training snippets. The value determines the size of the steps between the start positions of the snippets selected for the model training. So not all possible start positions for training snippets are taken, but every nth position as start position. A larger value results in faster model training. The value 1 results in the best model. Values larger than 1 (e.g. 10) reduce memory consumption, but more iterations may be required.

  • Learning Rate

    Enter the size of the optimizer steps. The default value is 0.01. Valid value range is [0, 1].

    The larger the learning rate, the faster the training generally will be. However, convergence can be hindered, or even prevented, by large learning rates.

Network Layout

Layer Type

Select between 1D Convolution and Temporal Convolution cell type.

Number of Layers

Enter the number of layers. Depending on the number of layers, corresponding input fields are generated for the next 4 options.

Number of Filters

Specify the number of filters for each layer separately.

Kernel Size

Specify the kernel size for each layer separately.

Note

The kernel size and dilation rate settings determine the length of the model's receptive field, i.e., how far into the past the model can look to compute the prediction for the current time step. See also, Model Prediction with Convolutional Neural Network (CNN).

Dilation Rate

Specify the dilation rate for each layer. Each temporal convolutional layer uses dilated Conv1d layers with dilation rate r (i.e., every rth element of the input is used for convolution). For example, if you want to use the entire input sequence, you can use r=bi-1 for the ith layer, where b is a natural number ≥ 2. The default is r=1 for each layer.

Note

The kernel sizes and dilation rates settings determine the length of the model's receptive field, i.e., how far into the past the model can look to compute the prediction for the current time step. See also, Model Prediction with Convolutional Neural Network (CNN).

Leaky ReLU Slope

Specify the Leaky ReLU activation function of the CNN layers. The slope for negative inputs can be set in the interval from 0 (corresponding to ReLU activation) to 1 (corresponding to linear activation).

Opens a plot of the activation function with the current slope values. If different values are entered in the fields, one function is plotted for each different value.

Dropout

Enter a value between 0 and 0.9 as a percentage of neurons to be randomly deactivated during training. That means the weight of the neurons is set to 0 temporarily. This avoids overfitting. The entered value 0 means not activated, 0.1 means 10% of the neurons are set to 0 temporarily. The typical value range is [0, 0.2].

Use Skip Connections

Activate to add the input of the layer to its output.

If the input and output sizes do not match, the input is processed by an additional convolutional layer before being added to the output. Skip connections have been shown to simplify training and improve network performance by allowing the flow of information to skip selected layers.

ClosedMore information

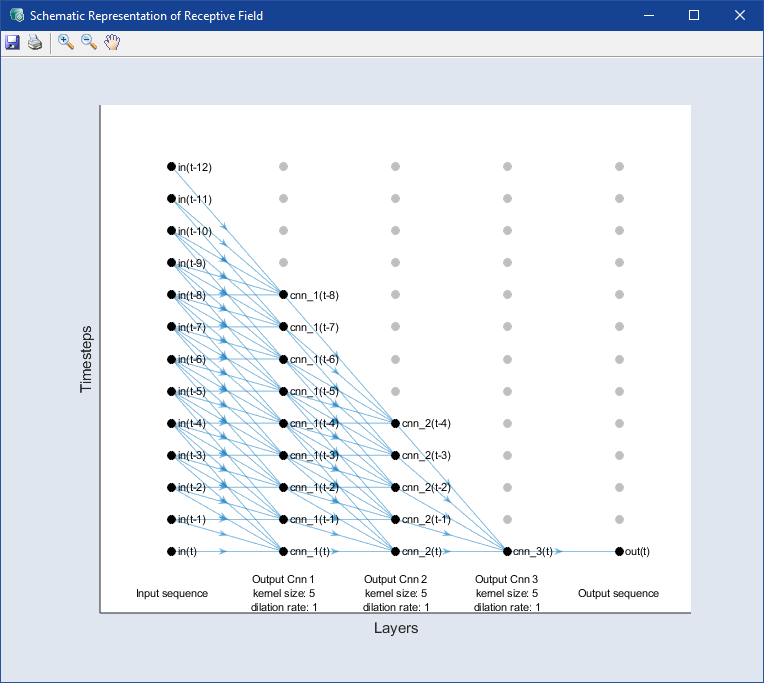

Receptive Field

Displays the number of past time steps considered by the model. The value is displayed dynamically depending on the values for kernel sizes and dilation rates. A value k means that inputs from the interval [t-(k-1),t] (and possibly not all of them) are used to compute the output at time step t.

Opens a Closedschematic representation of the receptive field generated for the specified kernel size and dilation rate.

Number of Network Parameters

Dynamically shows the number of parameters used by the model training for current settings (including potential initialization network).

Output Properties

Output Transformation

Select the transformation type of the output. Using a transformation can improve the model prediction. Not all transformations are available if the training data has negative or zero values.

You can select from the following choices:

  • none: no transformation
  • log(y): logarithm

  • Bounded: limited to lower and upper bound

    Click Edit to Closedview the automatically selected bounds or to define the lower and upper bounds manually. To define them manually, deactivate the Automatic checkbox. The bounds must be in the range of the training data.

  • log(y+c): logarithm plus constant

    Click Edit to Closedview the automatically selected log shift or to define a manual shift value. To define it manually, deactivate the Automatic checkbox.

Training Properties

Continue Training

Activate the checkbox to continue with existing model training and iterations, if possible, instead of starting a new training. You can change the training properties and continue. The network layout must remain the same. For example, train with a complex activation function, then switch to a more efficient one (for the ECU) and continue training seamlessly. Continue Training works best with the Stochastic Gradient Descent as optimizer (Manual Detailed Training Settings > Optimizer), which is automatically selected when Continue Training is activated.

Number of Multistarts

Enter the number of training repetitions with different starting values. A higher value can improve the model quality, but the model training then takes more time. The default value is 3.

Number of Iterations

Enter the number of iterations to be performed during model training. If the model performance does not improve within 10 iterations on the validation data, the training will be aborted. In deep learning this is often referred to as number of epochs.

Training Loss

Select the type of training loss. Training loss is the criterion that is minimized during model training.

Absolute equals the RMSE calculation:

Relative puts this in relation to the measured value:

Transformed behaves like Absolute, but performs the loss calculation in the transformed space, i.e. it depends on the output transformation.

Snippet Length

Enter the size of the sequences into which the data is segmented. The underlying optimizer then gets batches with sequences of this fixed length, calculated as the sum of the entered value and the length of the receptive field. The default value for the snippet length is 50.

If the length of the current data is about this number of steps or less, it is recommended that you reduce the snippet length, although an optimization with "Snippet Length" = 50 is possible. A smaller value trains faster.

Plot RMSE during Training

Activate if you want the RMSE values for training data and validation data to be Closeddisplayed during model training.

Activate Detailed Training Settings

Activate the checkbox to display the ClosedDetailed Training Settings section.

  • Optimizer

    Select the optimizer used to train the model. If you activate the Continue Training checkbox, it is recommended to select Stochastic Gradient Descent (for continue).

  • Data Scaling

    Select the scaling variant for the model training.

    Before the model training, the training data is scaled internally so that the different input signals are mapped to a similar range. ASCMO-DYNAMIC offers three different scaling types.

    Normalization:

     scaled to an interval of length one contained in [-1, 1].

    Robust Normalization:

    This scaling method is preferable whenever there are outliers in the data.

    Standardization: (Z-Score normalization)

The detailed training settings are adjusted for each iteration. For the first iteration the Start Value is used, for the last iteration the Final Value. The values in between are interpolated.

  • No. of Optimizer Substeps

    Determines how many sequences of length Lookback Length are used for one optimizer update. The default value is 100, which is the batch size used in deep learning. The larger the value, the smaller the batch size and vice versa. If the number is small, the optimizer step is performed less frequently and the training is therefore faster.

  • Steps Between Training Snippets

    Set the steps between training snippets. The value determines the size of the steps between the start positions of the snippets selected for the model training. So not all possible start positions for training snippets are taken, but every nth position as start position. A larger value results in faster model training. The value 1 results in the best model. Values larger than 1 (e.g. 10) reduce memory consumption, but more iterations may be required.

  • Learning Rate

    Enter the size of the optimizer steps. The default value is 0.01. Valid value range is [0, 1].

    The larger the learning rate, the faster the training generally will be. However, convergence can be hindered, or even prevented, by large learning rates.

Static Model Type

Select the Static model type you want to use.

See Static Model Types for more information about the model types.

Model Properties Edit

Click to edit the parameters of the model.

See NARX Model Types for more information about the model properties.

Start Training

Click to start model training with all settings made.

The icon on the right indicates the state of the model training.

: Model has not been trained jet.

: Model is trained and up to date.

: Model is trained but data is outdated. Configuration and/or training/validation data has changed.

Open in ASCMO-DYNAMIC

Opens the model configuration in a new ASCMO-DYNAMIC instance, where you can save or export the model.



See also

Static Model Types
