Optimization Menu

The Optimization menu consists of the following entries:

Single Result

Opens the Single Result Optimization window.

Multi Result

Opens the Multi Result Optimization window.

Global Optimization

Note
The Global Optimization function in the Optimization menu is only available if operating point axes have been selected. You can set the operating point axes via the menu In/Outputs → Set Operating Point Axes (see Set Operating Point Axes).

Opens theGlobal Optimization window.

Export to MOCA

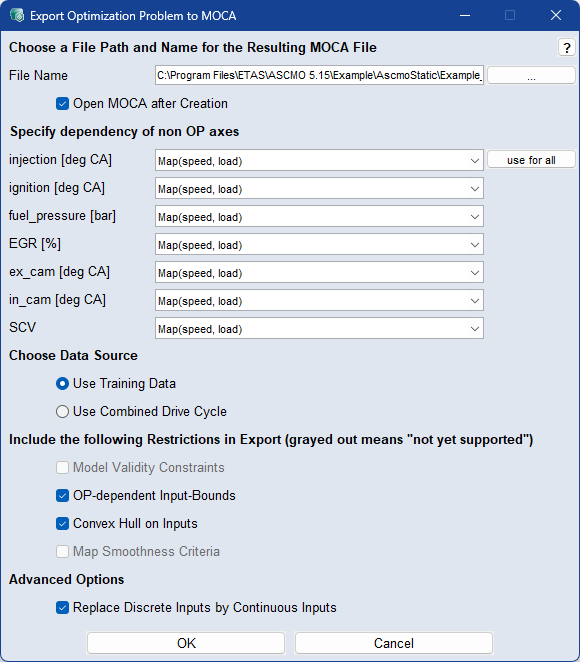

Opens the Closed "Export Optimization Problem to MOCA" window where you can export the current global optimization problem to a MOCA project.

During the export, the inputs (except operating point axes) are exported as maps depending on the operating point axes. The training data or the driving cycles are taken over to MOCA as input data.

Bounds and constraints defined in the "Global Optimization" window are transferred to the MOCA project, too. For each selected ASCMO-STATIC output, a new line is added to the model list. Function nodes are created, and the optimization criteria are defined.
