Mapping ASCET or FMU Outputs

To map ASCET or FMU outputs, proceed as follows:

1. Open the Models pane.

2. In the model list, select the ASCET/FMU model whose outputs you want to map.

   The lower part of the Models pane shows the ASCET Model or FMU Model variant.

3. In the Output Mapping area, click Add.

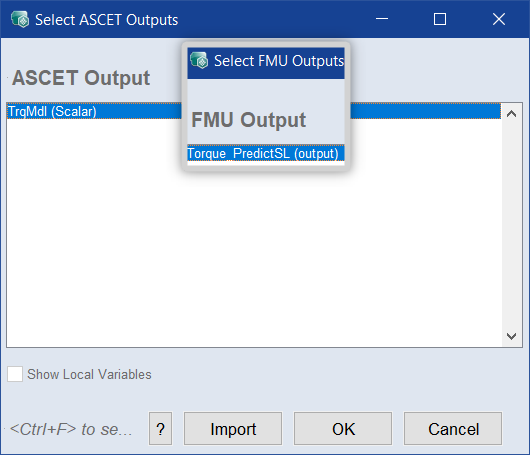

   The "Select ASCET/FMU Outputs" window opens. The window shows names, types, and - for curves and maps - sizes of ASCET elements that can be selected.



4. In the ASCET/FMU Output area, select the output you want to map.

   You can map one, several, or all outputs.

5. Click OK to map the elements.

   The mapping is added to the list.



   You can delete mappings via the Delete button. If desired, use the and buttons to sort the list.
