Select <Model> Outputs

Models step > Output Mapping area > Add

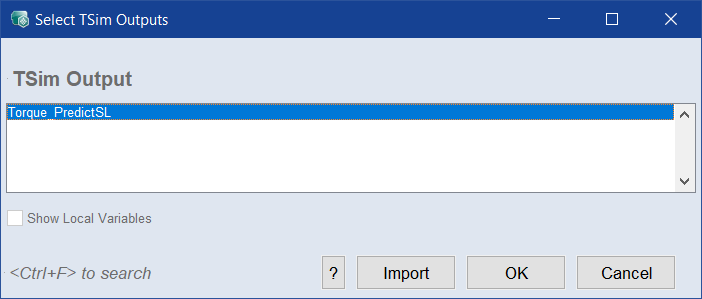

The Select <Model> Outputs window for ASCET models, FMU models or TSim Plugins contains the following elements:

<Model> Output

Select one or multiple outputs to add mappings to the Output Mapping list. You can use the standard Ctrl/Shift selection functions in the table, or click and hold Lmb and drag the cursor over the cells/rows you want to select.

Import

Click to import a lab file parameter list to use an existing output mapping.

Adds the selected mappings to the Output Mapping list. Existing entries in that list are kept.

Opens the online help in the appropriate context.

Cancel

Discards your settings and closes the window.
