Add Parameter Mapping

Models step > Parameter Mapping area > Add

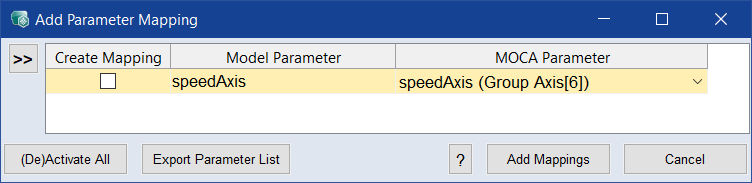

The Add Parameter Mapping window contains the following elements:

>>/<<

Shows/hides the search list for faster selection of MOCA Inputs.

Create Mapping

Activate the checkbox to create a mapping.

Model Parameter

The column shows the elements of the model available for mapping.

MOCA Parameter

Displays the available inputs and allows you to select one from the list. You can also select create a new parameter.

De(Activate) All

Activates/deactivates all checkboxes in the Create Mapping column.

Export Parameter List

In an open file dialog, you can select the name and path for the parameter list to be exported to a lab file (*.lab).

Opens the online help in the appropriate context.

Add Mappings

Adds the selected mappings to the Input Mapping list. Existing entries in this list are retained.

Cancel

Discards your settings and closes the window.
