Add Input Mapping

Models step > Input Mapping area > Add

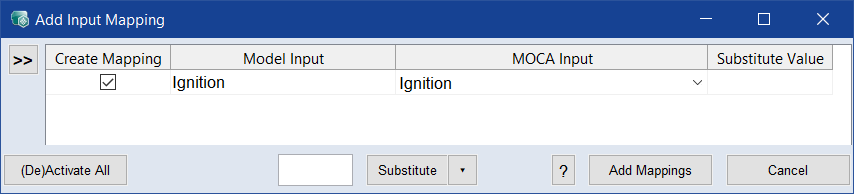

The Add Input Mapping window contains the following elements:

>>/<<

Shows/hides the search list for faster selection of MOCA Inputs.

Create Mapping

Activate the checkbox to create a mapping.

Model Input

The column shows the elements of the model available for mapping.

Substitute Value

Substitutes the input with the given constant value.

MOCA Input

Displays the available inputs and allows you to select one from the list.

De(Activate) All

Activates/deactivates all checkboxes in the Create Mapping column.

Substitute

Use the input field to enter a constant value to replace the input.

Click Substitute to substitute all unmapped inputs.

Use > Substitute all to substitute all inputs with the specified value.

Opens the online help in the appropriate context.

Add Mappings

Adds the selected mappings to the Input Mapping list. Existing entries in this list are retained.

Cancel

Discards your settings and closes the window.
