Mapping Simulink® Outputs
In the Simulink Outputs Mapping area, the simulation outputs are made available to ASCMO-MOCA. Outport and ToWorkspace blocks are supported.
-
In the Simulink Outputs Mapping area, click Scan Model.

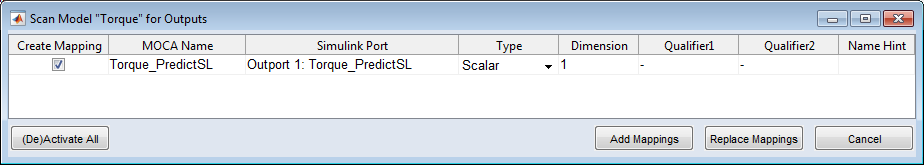

The model is scanned for Outport and ToWorkspace blocks. The results are then presented in the Scan Model <model_name> for Outputs window
-
If necessary, enter the dimension and qualifiers manually.
-
In the Create Mapping column, activate the checkboxes in all rows you want to map.
-
Click Add Mappings to add the selected mappings to the Simulink Outputs Mapping list.
With Add Mappings, existing content in the Simulink Outputs Mapping list is kept. If an existing row is selected again, this selection is ignored and a message is issued in the log window.
Replace Mappings removes existing content in the Simulink Outputs Mapping list.
Example

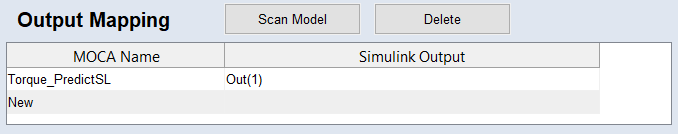

Torque_PredictSL | Out(1) makes the Simulink output available for optimization under the name Torque_PredictSL.
A list of possible notations is given in
See also
"Scan Model <model_name> for Inputs/Outputs" Window
