Mapping Simulink® Parameters

In the Parameters Mapping area, project-related maps/curves and scalars can be mapped to the parameters from the Simulink model.

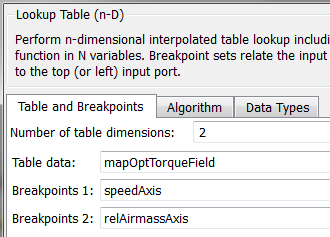

ASCMO-MOCA expects the parameters to be calibrated as MATLAB® workspace variables. This could for example be the following Simulink map:

You can map project-related parameters and Simulink parameters either automatically (see Scanning the Simulink® Model and Mapping Parameters) or manually (see Mapping Parameters Manually).
