ASCMO Data Import (ASCMO-STATIC)

ASCMO-STATIC start window > Start Import

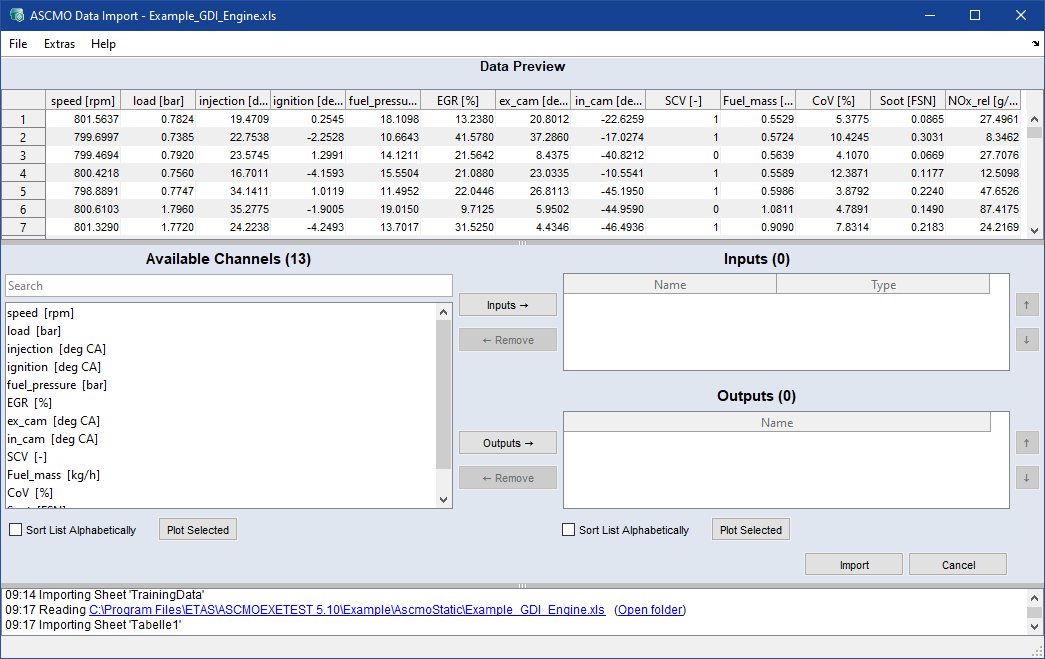

The ASCMO Data Import window contains the following elements:

ClosedFile

  • Load File

    Opens a file selection window where you can select input file.

  • Load Channel Config (*.ini, *.lab)

    Load an existing configuration of channels from an *.ini or *.lab file.

  • Save Channel Config (*.ini)

    Saves the current configuration of channels to an *.ini file.

  • Format Configuration (data-dependent)

    Shows/hides the Format Configuration area where you can provide information on the table to be imported.

  • Close

    Closes the ASCMO Data Import window.

  • Exit

    Exits the ASCMO Data Import window.

ClosedExtras

  • Plot Selected

    A window opens that displays one of the plots listed below, depending on the number of selected channels. See also Displaying the Measurement Data.

  • Plot Selected In and Outputs

    A window opens that displays the plot of selected In and Outputs.

  • Find Relevant Inputs

    Opens the Relevance of Inputs window that shows the relevance of the various inputs. See also Checking the Relevance of the Inputs (ASCMO-STATIC).

  • Add selected channels to Inputs<Strg/ctrl+I>

    Used to add a channel selected in the Available Data area to the Inputs list.

  • Add selected channels to Outputs<Strg/ctrl+O>

    Used to add a channel selected in the Available Data area to the Outputs list.

  • Remove selected channels<Strg/ctrl+R>

    Used to delete the selected channels from the Inputs or Outputs list.

  • Start Import<Strg/ctrl+P>

ClosedHelp

    • User Guide: Opens the PDF User Guide.

    • Online Help: Opens the online help (F1).

    • Interface Help: Opens the interface help.

    • License: Opens the ETAS License Manager.

    • Support: Displays contact information for various ETAS support channels.

    • Safety Advice: Opens the ETAS safety advice.

    • About: Opens the About window, where you can also get information about OSS used in ASCMO.

Data Preview

This area shows the table to be imported.

Format Configuration (data-dependent)

This area is visible only if the File > Format Configuration menu option is marked. It can be used to provide and store information on the table to be imported.

  • drop-down list

    Select a format configuration.

  • New/Rename

    Creates a new format configuration or renames a selected existing configuration.

  • Delete

    Deletes the currently selected format configuration.

  • Use as default checkbox

  • Header row field: Number of the row that contains the column headers, i.e. the channel names.

  • Unit row field: Number of the row that contains the channel units.

  • First data row field: Number of the first row that contains channel data.

Available Data

This area contains the following elements:

  • a search field (see the field tooltip for further information)

  • a list of all channels that can be imported

  • Sort List Alphabetically checkbox

  • Plot Selected

    A window opens that displays a certain type of plot, depending on the number of selected channels. See also Displaying the Measurement Data.

Inputs >/Outputs >

Adds selected data channels from Available Channels to Inputs/Outputs.

Note

You can also use <Ctrl+I>/<Ctrl+O> or double-click a data channel.

Remove f

Removes selected data channels from Inputs/Outputs.

Note

You can also use <Ctrl+R> or double-click an input/output.

Remove

Removes selected data channels from Inputs/Outputs.

Note

You can also use <Ctrl+R> or double-click an input/output.

Inputs

  • A list of all input channels selected for import. In the Type column, you can assign a type.

    Use the and buttons to sort the list.

Outputs

  • A list of all output channels selected for import.

    Use the and buttons to sort the list.

    • Sort List Alphabetically (for In and Outputs)

  • Plot Selected

    A window opens that displays the plot of selected In and Outputs.

Time Base settings (data-dependent)

If not all data should be used and the data import should be limited, a data section can be selected.

  • Start Time [s]: select the start time of the data to be imported.

  • End Time [s]: select the end time of the data to be imported.

  • Choose method

    • Fixed Step Width [s]: enter resampling time (step width) for the imported data and choose a method in the Resampling Method drop-down list.

    • Raw Data: use this option to import raw data without resampling.

    • Steady State Points: use this option to identify steady states, i.e. find constant phases in an MF4 file and import only the steady state points.

  • Resampling Method (only for Fixed Step Width)

    Defines transforming method for data at given time points to a uniform time basis. Choose one of the methods.

    • Linear Interpolation: used for a linear interpolation between two points.

    • Adaptive Window: used for resampling in an adaptive window size.

    • Adaptive Window and keep Missing Data: used to preserve missing data as NaN.

    • Zero-order Hold: used for discrete signals to preserve discrete values.

Import

Starts the import and closes the window.

Cancel

Closes the window without starting the import.
