Displaying the Measurement Data

To check the training data again prior to the import, it is possible to graphically display the measuring data. Proceed as follows:

In the "ASCMO Data Import" window, "Available Data" list, select one or more variables.
Do one of the following:
- Click on Plot Selected.
- Open the Extras menu and select Plot Selected.
A window opens which displays the following (depending on the number of selected variables):

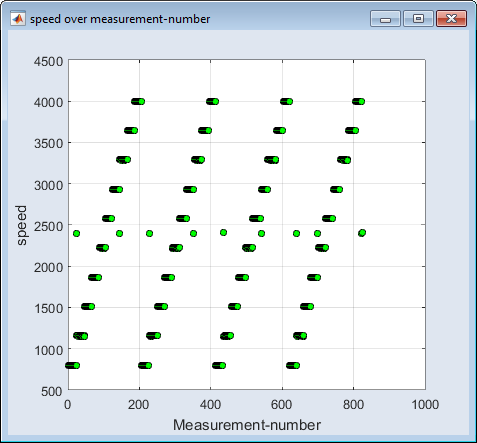

- 1 selected variable: measured data over number of measurement (e.g., speed over number)

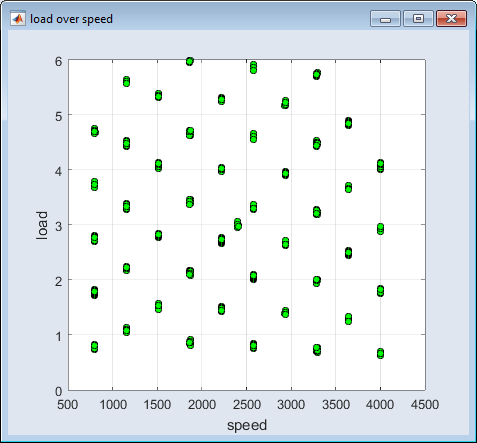

- 2 selected variables: data of one variable over data of the other variable (e.g., load over speed)

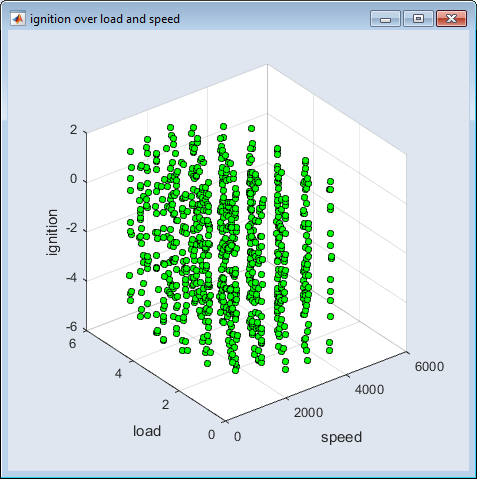

- 3 selected variables: data of the third column above the plane set up by the other two (e.g., fuel_pressure over the speed-load plane).

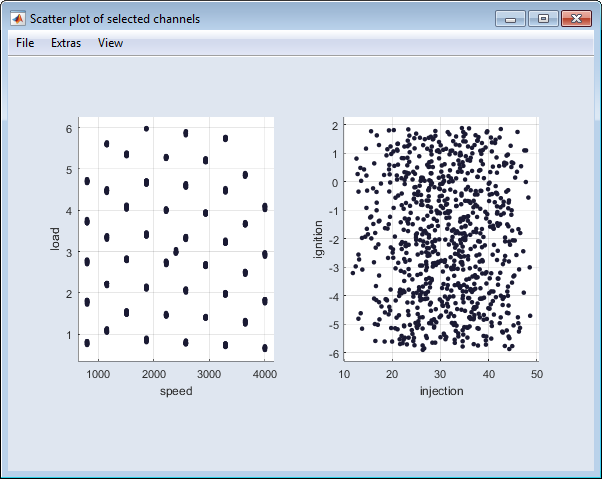

- 4 or more selected variables: a series of scatter plots
Use this window to check the plausibility of the data.
