Relevance of Inputs (ASCMO-STATIC)

Model menu > Input Relevance (RMSE/Length Scale)><output>/All

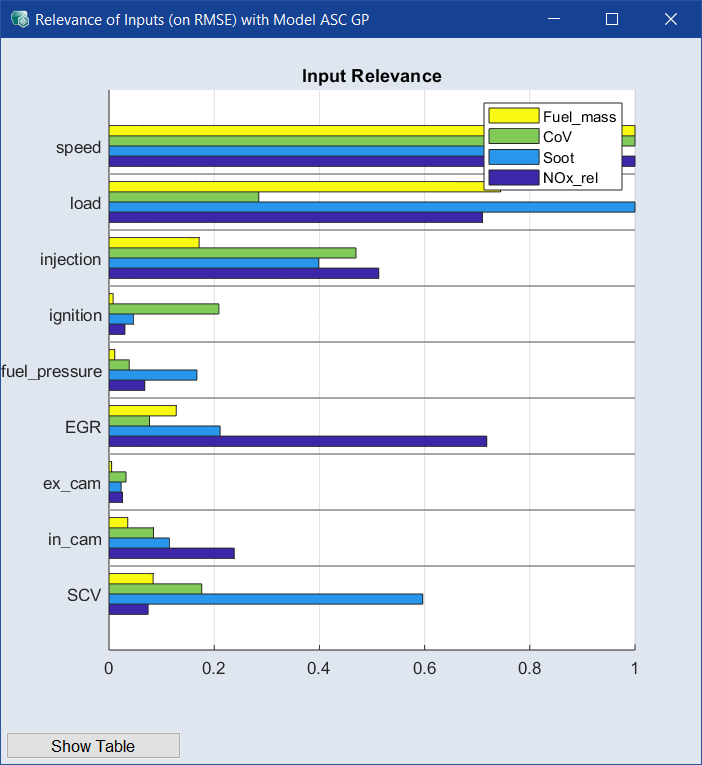

The Relevance of Inputs (on RMSE/Length Scale) window contains the following elements:

Input Relevance

The plot shows the relevance of each input on the/each output as colored bars. The horizontal axis shows the relevance, the vertical axis shows the inputs. The output with the value 1 has the greatest relevance and the remaining outputs are in a percentage relation to it.

Show Table

Opens a separate window in which the results are displayed in a table.

See also

Checking the Relevance of the Inputs (ASCMO-STATIC)
