Using an ASCMO-STATIC/ASCMO-DYNAMIC Model
Before you can use an ASCMO-STATIC/ASCMO-DYNAMIC model for the optimization, you need to map all ASCMO inputs to MOCA elements to make the model available in the function. Proceed as follows:
-
In the model list of the Models pane, select an ASCMO-STATIC/ASCMO-DYNAMIC model.
The lower part of the Models pane shows the ASCMO Model variant.
-
In the mapping table, map all unmapped ASCMO inputs.
-
Select an ASCMO input.
-
In the "MOCA Name" column next to the selected input, open the combo box.
The combo box offers all MOCA data channels and function nodes for selection.
-
Select the channel or node you want to map to the ASCMO input.
Note
All ASCMO inputs must be mapped to MOCA elements before you can use the ASCMO model.
-
-
In the navigation, click on Function.
The Function pane opens.
-
Add a new node or edit an existing node.

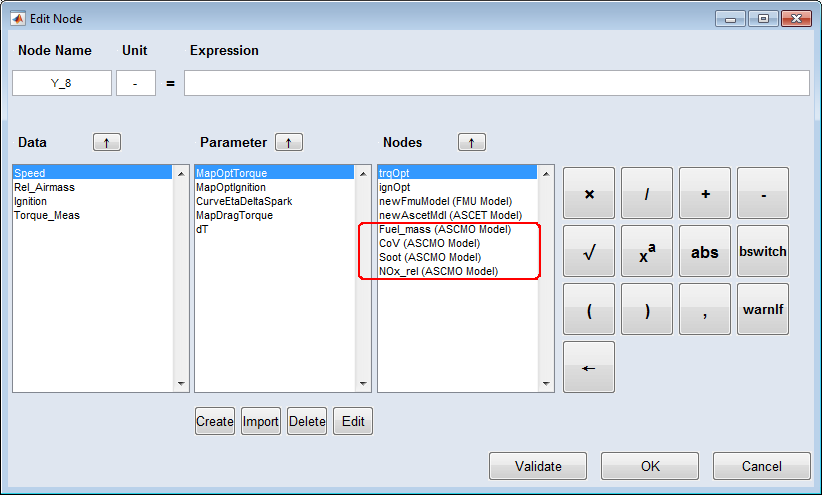

The ASCMO models are available in the
"Nodes" area. -
Insert an ASCMO model in the expression.
In addition, the name <ASCMO model name>_mdl is entered in the "Node Name" field.
-
Click on OK.
The node is added or changed according to your settings. In addition, a node <ASCMO model name>_mdl.<output name> is created for each model output.
