Feedback Loop

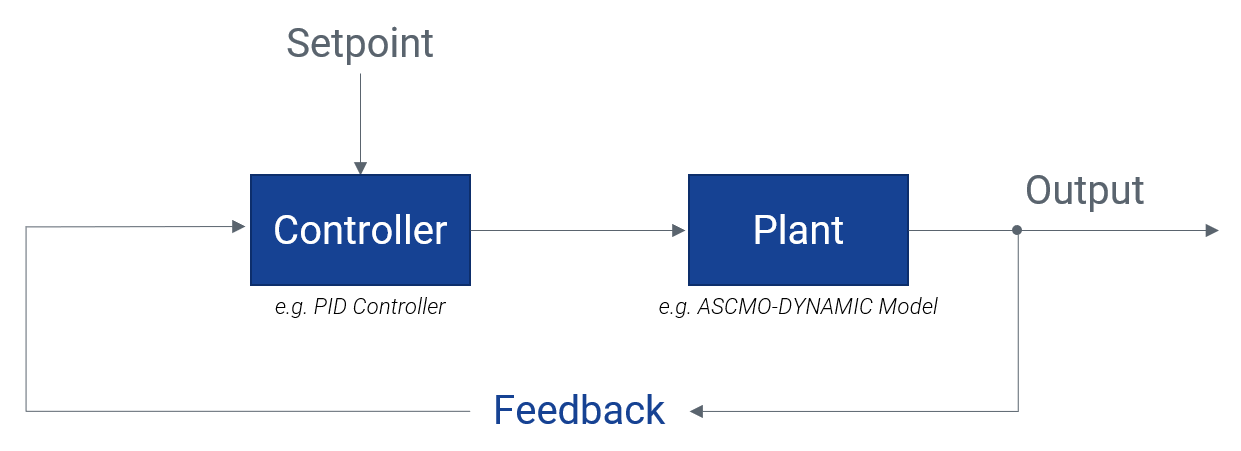

Within a node of the Function you can access a future node using a feedback loop with time delay. This can be also used with a dynamic model. See the following graphic and ASCMO-MOCA example.

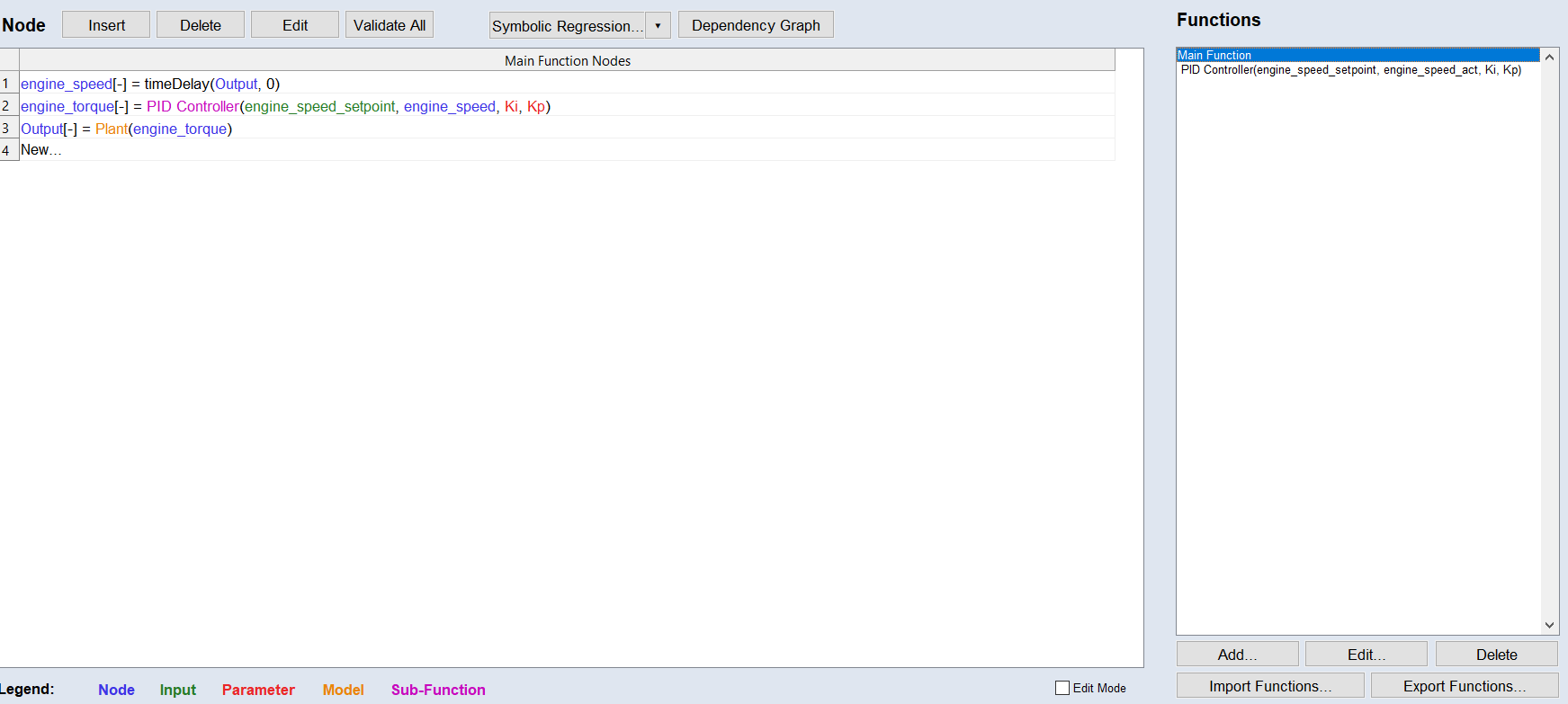

Main Function Nodes

engine_speed[-] = timeDelay(%Output%, 0)

engine_torque[-] = %PID Controller%(%engine_speed_setpoint%, %engine_speed%, %Ki%, %Kp%)

Output[-] = %Plant%(%engine_torque%)

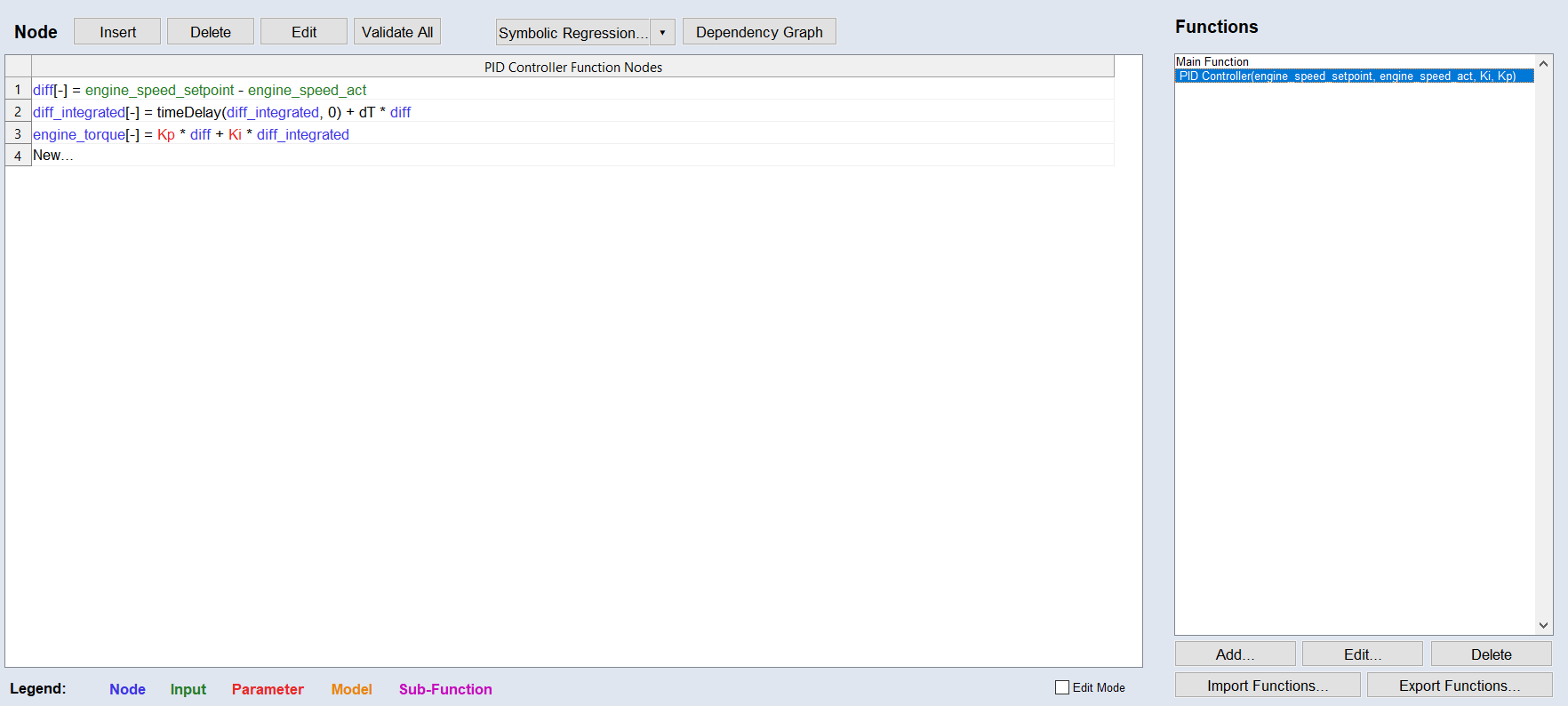

PID Controller Function Nodes

diff[-] = %engine_speed_setpoint% - %engine_speed_act%

diff_integrated[-] = timeDelay(%diff_integrated%, 0) + dT .* %diff%

engine_torque[-] = %Kp% .* %diff% + %Ki% .* %diff_integrated%

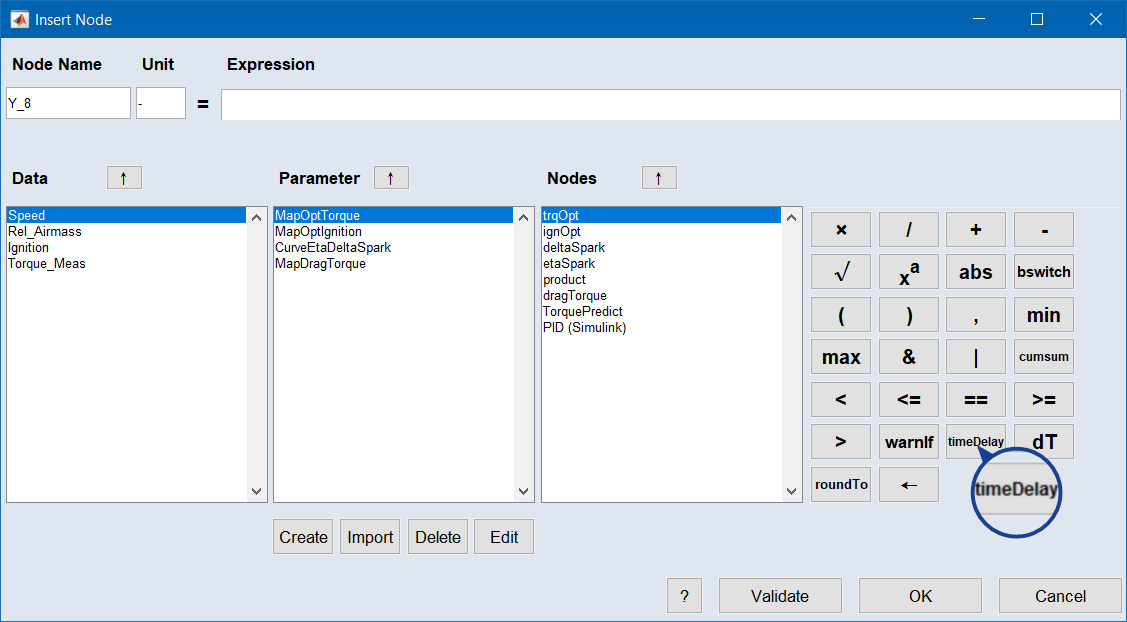

The timeDelay element is one of the mathematical operators in the "Insert/Edit Node" window.
