Creating Projects

Prerequisites for calibrating with INCA are creating a memory image of the electronic control unit and storing the information in the form of datasets in INCA.

Before you can use INCA to apply different projects, you need the following files:

• Project description file (*.a2l) with the physical description of the data
• HEX file (Intel HEX or Motorola format, e.g.: *.hex or *.s19) containing the ECU program, which consists of code and data
• (Optional) electronic control unit documentation if the electronic control unit manufacturer provides such documentation

The different data statuses of working and reference pages are stored separately in INCA as a working dataset and a read-only reference dataset. Read-only datasets are shown with a red frame .

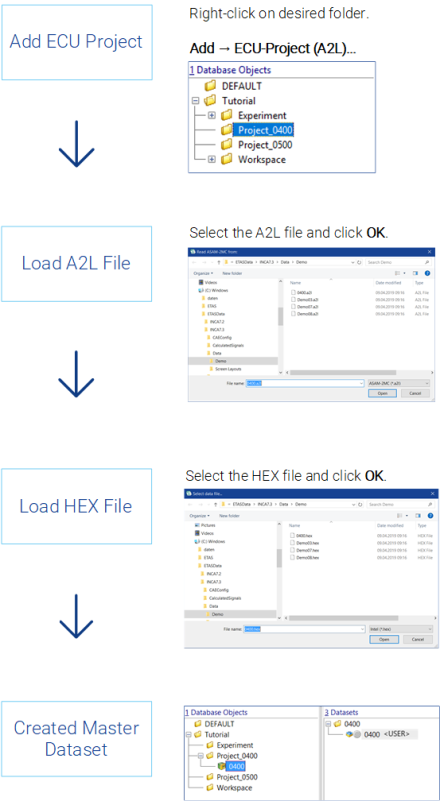

Procedure:

See also

Creating a Project
