Graphical overview of elements
|

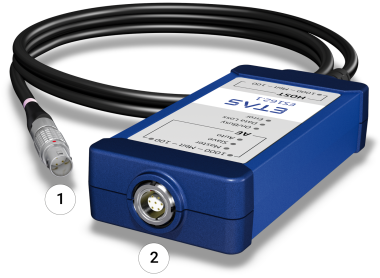

Fig. |
Connection |
Description |
|---|---|---|
|
1 |
LEMO 1B |
Combined connection for power supply and 100/1000 BASE-T Ethernet (IEEE 802.3) via connected ETAS module (e.g. ES8xx series) |
|
2 |
LEMO 1B |
100/1000BASE-T1 Automotive Ethernet connection |
