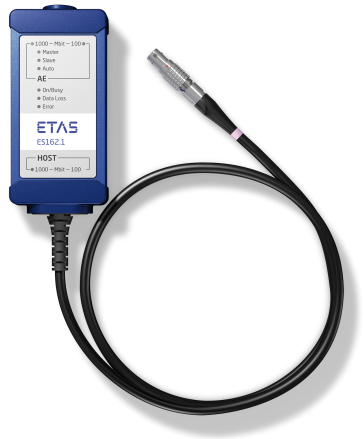

About ES162.1 - Media Converter

The ES162.1 Media Converter converts Automotive Ethernet (100/1000BASE-T1) into Standard Ethernet (IEEE 802.3). The connection speed and connection mode of the Automotive Ethernet can be configured via a web interface.

Scope of application

The ES162.1 can be used for the following tasks:

  • Recording and capturing of communication data as well as calibration of ECUs

  • ECU diagnostics

Properties

The most important properties of the ES162.1 Media Converter:

  • Conversion of Automotive Ethernet (100/1000BASE-T1) into Standard Ethernet
  • Automotive-capable product that is suitable for use in the development environment and in the vehicle on test courses
    • Adaptable to ambient conditions (temperature, EMC)
    • Wide supply voltage range
    • High level of mechanical stability and robustness
  • Display of the operating state and fault state
  • Lemo connector for connection of the product to ETAS modules
  • Automatic and manual configuration of the Automotive Ethernet speed (100/1000 Mbit/s) and the Master/Slave mode
  • Support time synchronization in accordance with IEEE1588
  • Compensation for the signal runtimes corresponding to the Precision Time Protocol PTP (IEEE1588)
  • Standby operation
  • Firmware updates via Hardware Service Pack (HSP)
  • No additional drivers required
  • Together with BR-XETKs, the product supports the measurement, application and flash programming of ECU
