Delete OPs in/out of hull
In/Outputs menu > 2D Plot Operating Points > Extras menu > Delete OPs in/out of hull
Or
Calibration menu > Operating Points > Extras menu > Delete OPs in/out of hull
The Delete OPs in/out of hull window is used to delete operating points of an OP list, either the OPs inside or the OPs outside the hull.

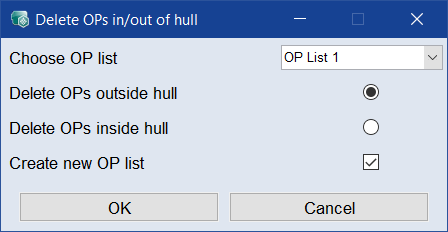

The Delete OPs in/out of hull window contains the following elements:
Choose OP list
This drop-down list shows all operating points lists in the project (except the Combined OP List). You can select one list at a time.
Delete OPs outside hull
If activated, all operating points outside the hull of the training data are deleted from the selected list.
Delete OPs inside hull
If activated, all operating points inside the hull of the training data are deleted from the selected list.
|
Note |
|---|
|
Operating point lists cannot be empty. If your selection would result in an empty operating point list (e.g., if all operating points are inside the hull of the training data and you activate Delete OPs inside hull), a warning window opens when you click OK, and nothing is deleted. |
Create new OP list
If activated, a new list without the deleted operating points is created. It is named <selected_list>_outside or <selected_list>_inside, depending on your settings. The originally selected list remains unchanged.
If deactivated, the operating points are deleted from the selected list.
OK
Deletes the selected operating points, creates a new OP list if required, and closes the window.
Cancel
Discards your settings and closes the window.
