DLL Initialization
Models step > select a TSim model >DLL Initialization

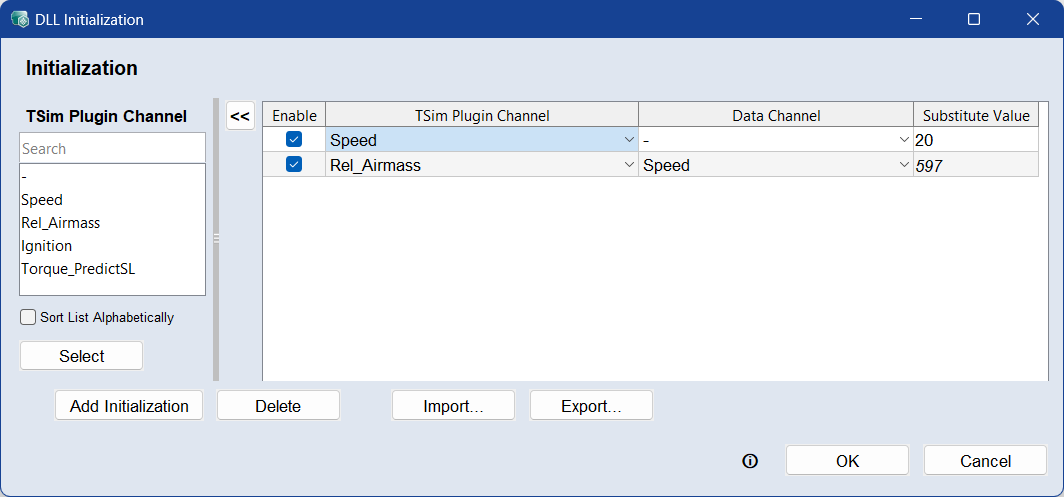

In the DLL Initialization window you can set a specific initial value, select to use the first value of one of the data channels, or import initialization information. It contains the following elements:
Initialization table
Enable
To enable the initial value substitution, activate the checkbox.
To disable the substitution, disable the checkbox.
TSim Plugin Channel
Select the TSim plugin channel you want to set the initial value for from the drop-down list.
Data Channel
To use the initial value of a data channel as the initial value for the TSim plugin channel, select the data channel from the drop-down list.
To use a custom value as the initial value, select - from the drop-down list and enter the value manually in the Initial Value column.
Substitute Value
Shows the new initial value for the selected TSim plugin channel.
To enter a value manually, select no data channel and double-click the column.
If the value is italicized, it means that the new initial value for the selected TSim plugin channel is the initial value of the data channel.
To easily search large channel lists, select the channel and click . It shows the TSim plugin/data channel list with a search field and the option of alphabetic sorting.
Select the channel from the list and click Select.
Add Initialization
Adds a row to the initialization table.
Delete
To delete a row, select it from the initialization table and click Delete.
Import
To import initializations from PLGN or MAT files, click Import.
Export
To export the initializations to a PLGN file, click Export.
OK
Applies your settings and closes the window.
Cancel
Discards your settings and closes the window.
