Select Inputs/Outputs for 3D Plots

In/Outputs menu > 3D Plot Outputs

The Select Inputs/Outputs for 3D Plots window contains the following elements:

Matrix area

This area shows a matrix with options for all combinations. Outputs are listed in rows, inputs in columns. The row determines the Z axis of the plot, the columns determines the axes of the X/Y plane.

If you click OK, each selected combination is plotted in a 3D plot window named "<output> over <input1> and <input2>".

ClosedExample

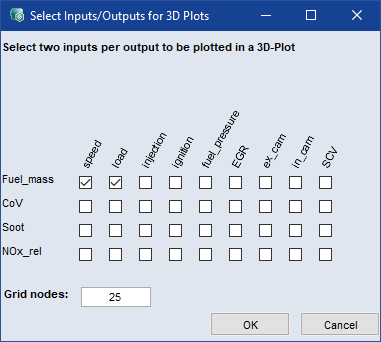

The following selection

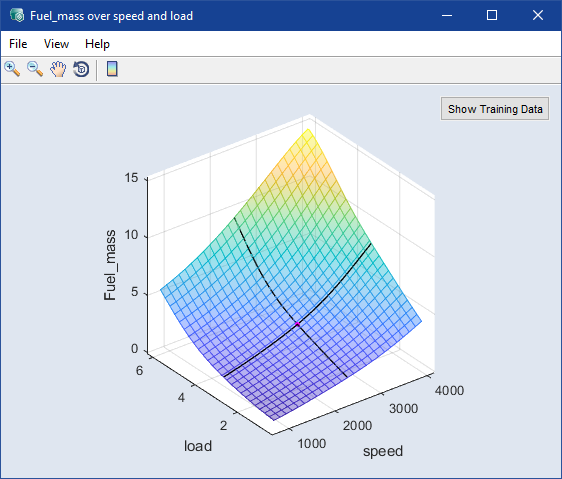

opens this plot:

Grid Nodes

Enter the number of grid nodes per axis.

OK

Applies your settings and closes the window.

Cancel

Discards your settings and closes the window.
