Symbolic Regression

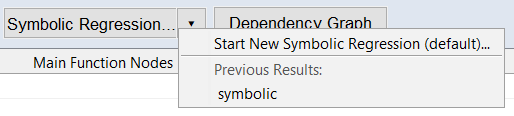

Function step > Symbolic Regression
The Symbolic Regression window contains the following elements:
Node Name
Name of the function node for Symbolic Regression.
Unit
Unit of the function node. The definition of a unit has no influence on the calibration of the parameter and is only visualized for support.
Target
Select input or node as target for Symbolic Regression.
Selected Inputs
List shows all selected inputs.
Select inputs or nodes as inputs for Symbolic Regression (moves selected item to Selected Inputs area)
Deselect inputs or nodes as inputs for Symbolic Regression (moves selected item to Available Inputs area)
Available Inputs
List shows all available inputs and nodes.
Optimization Configuration
See details in Algorithmic Details of Symbolic Regression and tooltips by clicking on optimization options.
Selected Alphabet
Select the items you want to include into Symbolic Regression. Enabled building blocks are shown as blue colored buttons.
|
Note |
|
When you create a function with timeDelay, only the output of the function is feeded back with a time delay of 1. |
?
Opens the context sensitive Help (<F1>).
Open Result
Opens the Pareto Front of various optimal results (regarding RMSE or complexity). Select a point on the Pareto Front which inserts the corresponding formula into the Function.
Delete Result
Deletes the results of the selected symbolic regression out of the history. It is no longer displayed in the Previous Results list and results cannot be opened.
To delete the symbolic regression node, use the Delete button in Function Step.
OK
Applies your settings and closes the window.
Cancel
Discards your settings and closes the window.
