Import Parameters and Bounds

Parameters step > Import > Parameters and Bounds > From File/From Open Projects

Or

Optimization step > > Import > Parameters and Bounds > From File/From Open Projects

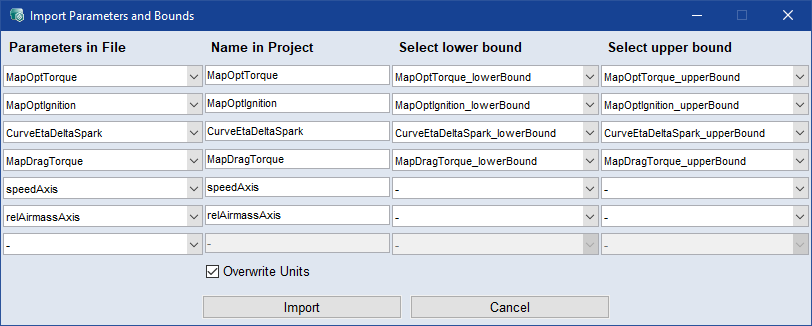

The Import Parameters and Bounds window contains the following elements:

Parameters in File

Shows original parameter name.

Name in Project

Shows the actual parameter name. You can change the parameter name by entering another name.

Select lower bound

Select a lower bound for the respective MOCA parameter from the import file/project.

Select upper bound

Select an upper bound for the respective MOCA parameter from the import file/project.

Overwrite Units

Select whether to overwrite the units in the project you are importing into.

Import

Imports the selected items as parameters – with the given name, if you entered one – and the set bounds.

Cancel

Discards your settings and closes the window.
