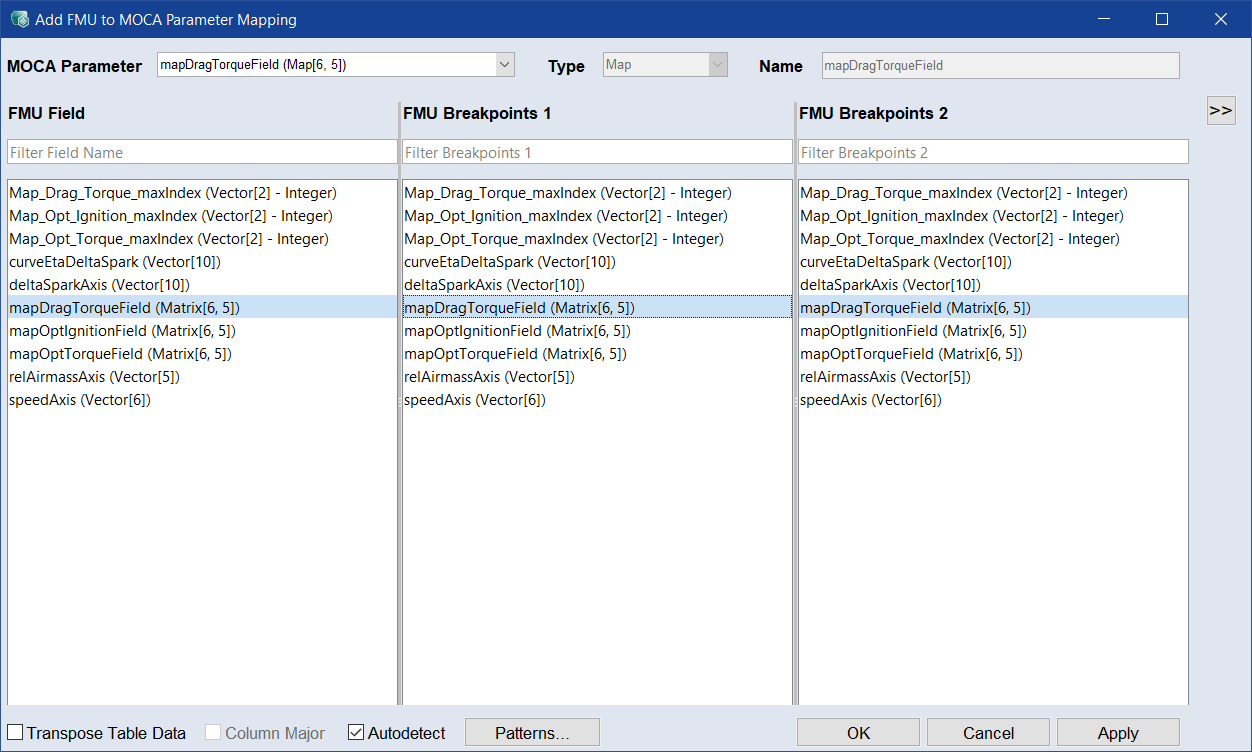

Add FMU to MOCA Parameter Mapping
Models step > Parameter Mapping area > Add
The Add FMU to MOCA Parameter Mapping window contains the following elements:
MOCA Parameter
Shows available parameter, where you can select one out of the list. You can also <Create New Parameter>.
Type
Shows the type of selected parameter. If you create a new parameter, you can define the type by selecting out of the list.
Name
Shows parameter name. If you create a new parameter, you can enter a name in the text field.
Add FMU Field
Shows available FMU elements for mapping to a MOCA parameter.
You can minimize the parameter list by entering a name into the respective input field.
Breakpoints
Shows available breakpoints for mapping. This must fit together, e.g. the interpolation points must match the map/curve.
Maps: needs a field and 2 breakpoints axis, in addition you can define the conversion as a transpose field.
Curve: needs a field and one breakpoint
New parameter (with Cube-4D type): needs a field and 4 breakpoints.
Transpose Table Data
Select Transpose Table Data for Maps or Matrix (Parameter Type).
Column Major
Usually the data is interpreted in row-major order. If data should be interpreted in column-major order, select the checkbox.
Autodetect
Autodetect matching MOCA parameter, type and related axes from patterns.
Patterns
Opens the Patterns for Curve/Map mapping, where you can define string patterns to detecting Curves or Maps.
OK
Maps the selected elements as parameters with the given name, if you entered one and the set field. Closes the window.
Apply
Applies your settings, but does not close the window.
Cancel
Discards your settings and closes the window.
