Mapping Parameters Manually

1. In the Parameters Mapping area, MOCA Parameter column, select a parameter from the dropdown list.

   You can also create a new parameter with the Create Parameter button or import a DCM file with the Import Parameter button.

2. In the Table Data Simulink and Breakpoints <n> Simulink columns, enter the variable names from the block mask.

   Or - as an alternative -

3. Proceed as follows.

   1. Click Edit Mapping.

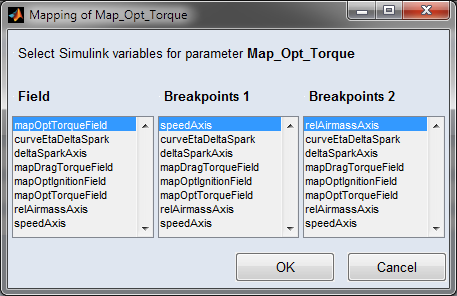

      The Mapping of <parameter> window opens. The init script is executed first and the model is loaded. The existing MATLAB workspace variables are displayed. ASCMO-MOCA automatically performs a name search.



   2. In the Field column, select the MATLAB workspace variable that describes the parameter value or table data.

   3. In the Breakpoint <n> columns, select MATLAB workspace variables used for the table axes.

   4. Click OK to accept your settings and close the Mapping of <parameter> window.

      The Table Data Simulink and Breakpoint <n> Simulink columns in the Parameters Mapping area are updated according to your selections.
