Record Editor – Window Elements

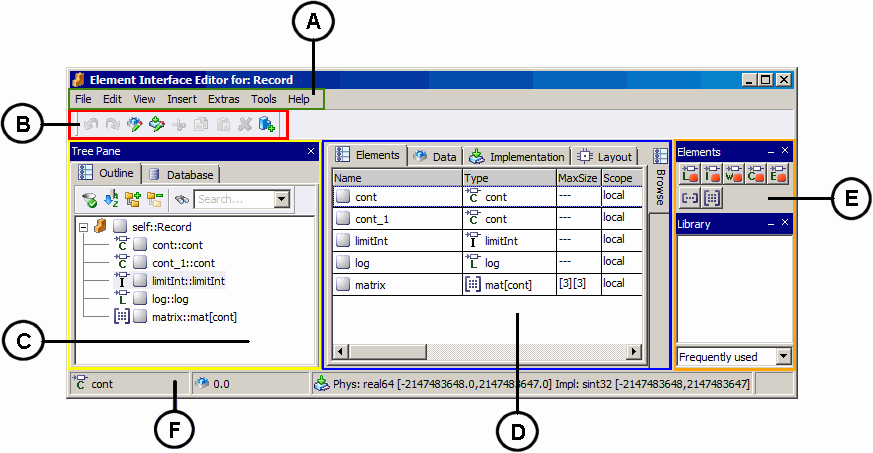

The Element Interface Editor for Records contains the following window elements:

1. Menu Bar

2. Toolbar with the following function blocks:

   • General

   • Elements

3. Tree Pane with the following tabs:

   • Outline
   • Database/Workspace

4. View area contains the following view:

   • Browse

5. Palette pane contains the following palettes:

   • Elements palette

   • Library palette

6. Status bar

   The status bar contains information on the element currently selected in the Outline tab (if the Mouse Over option on the Editors node of the ASCET options is deactivated) or on the element in the Outline tab the mouse is currently placed on (if the Mouse Over option is activated).
