AoU: ETAS_RTACAR_SM_RTE_003

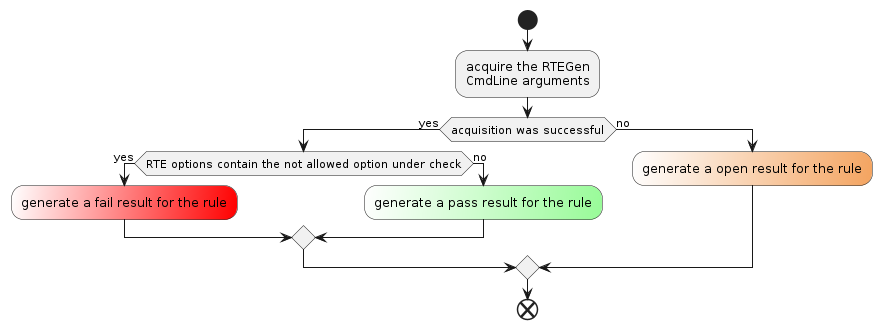

The validation of AoU ETAS_RTACAR_SM_RTE_003 is performed by analyzing the RTEGen tool log file. The goal is to ensure that the `–error-as-warning` option is not used in the RTEGen tool command line.

Tip

The mandatory option rte-log-file specifies the path to the RTEGen tool log file.

Rule Id	ETAS_RTACAR_SM_RTE_003
Title	The –error-as-warning RTEGen option must not be used.
Description	This rule checks the correct handling of the RTEGen tool calling option ‘–error-as-warning’.

Message Description

id_000

Id	id_000
Message	The rule can’t be evaluated because the applied RTEGen log file cannot be processed or there is an internal exception during command execution. Please refer to the log file for more detailed information.
Kind	Open
Level	None
Description	An issue was detected while processing the log file provided with the mandatory ‘–rte-log-file’ parameter. The cause may be that the referred file does not match the expected log format, the access to the file is blocked by another process or an internal exception during the ‘check-rte-options’ command execution occurs. Details about the reason could be found in the RTA-SQF log file.
How To Fix	Check that the file referenced by the ‘–rte-log-file’ parameter is the expected log file from the RTEGen tool and check that the file is accessible. Restart the command to exclude any kind of internal exception.

id_001

Id	id_001
Message	The ‘–error-as-warning’ RTEGen command-line option is not used which is the expected behavior.
Kind	Pass
Level	None
Description	This message represents the expected behavior of the rule ETAS_RTACAR_SM_RTE_003.
How To Fix	Nothing to do.

id_002

Id	id_002
Message	The ‘–error-as-warning’ RTEGen command-line option is used and set to the value ‘{0}’ which is an improper behavior.
Kind	Fail
Level	Error
Description	It is not allowed to use the ‘–error-as-warning’ RTEGen command-line option. The message appears if the option was used when calling the RTEGen tool. It is possible that the message appears multiple times, as often as the option was used. The used value of the option is shown in the message text as term ‘{0}’.
How To Fix	Call the RTEGen tool without the ‘–error-as-warning’ command-line option. Check the setup or configuration of the call of the RTEGen tool and avoid that the option is used.
