AoU: ETAS_RTACAR_SM_GEN_031¶
The ETAS_RTACAR_SM_GEN_031 AoU requires that reserved AUTOSAR prefixes are not used in the definition of symbols in user application source code.
Rationale for the validation

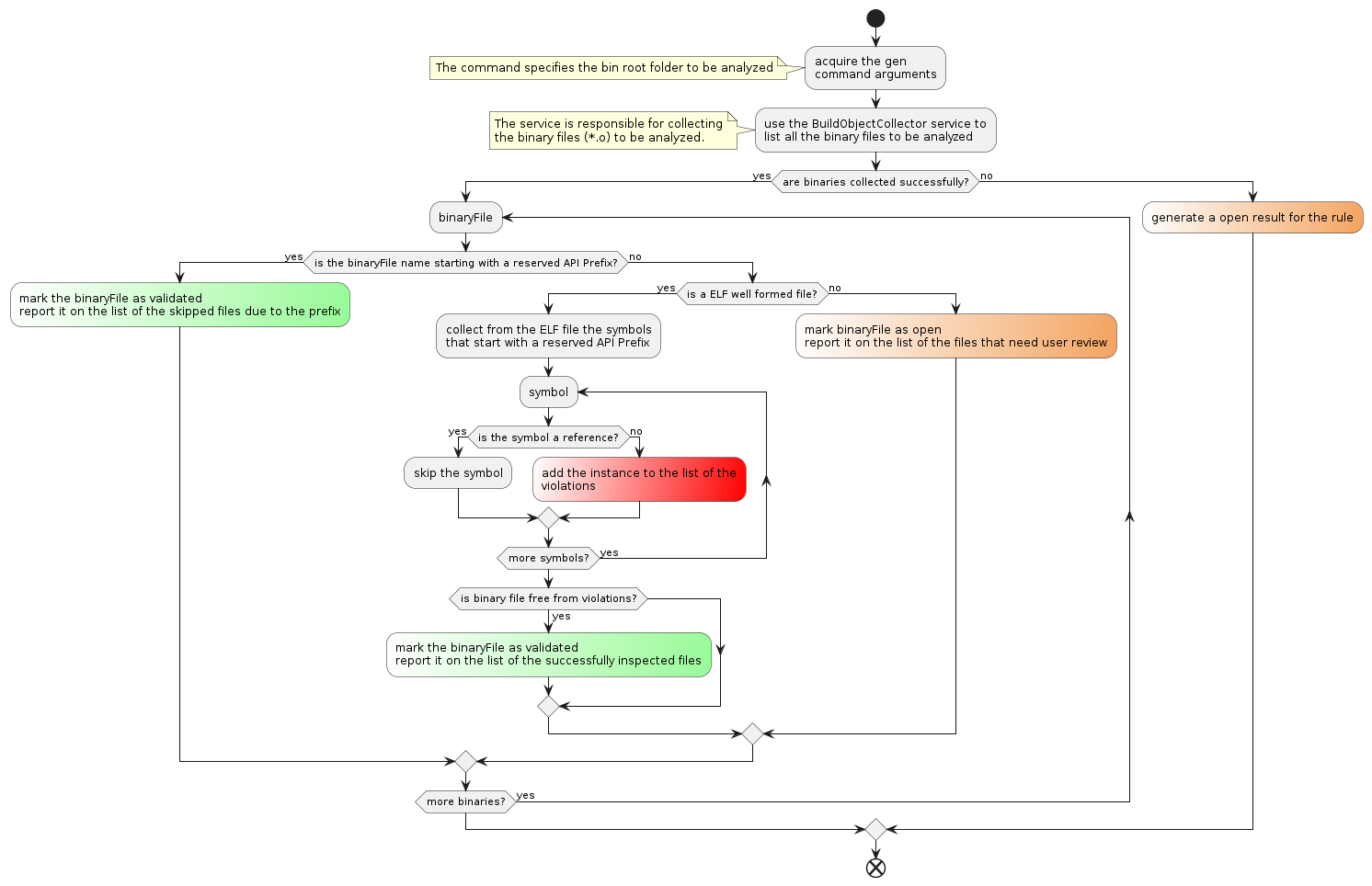

The validation is based on the following steps:
Collection of the binary object files to be analyzed
Identification of symbols defined in the binary object files that have a reserved AUTOSAR prefix
Reporting of the identified symbols
Important
Supported binary format and file extension
The ETAS_RTACAR_SM_GEN_031 AoU validation supports only the ELF binary format. If the input files are not in ELF format, manual review of the source code is required. The only supported file extension is ‘.o’.
Note
Static symbols
The ETAS_RTACAR_SM_GEN_031 AoU validation does not check static symbols. Static symbols are not visible outside the compilation unit, so they should not be reported in the ELF symbol table.
Note
Skipped files
The .o files skipped from the analysis are those whose names start with a reserved AUTOSAR namespace prefix (case insensitive) or with a rba_<yyy> prefix.
Precisely, given a prefix, files whose names is prefix.o, prefix_*.o or rba_<yyy>_*.o will be skipped.
These files are considered valid and are not further inspected for violations.
Note
Skipped symbols
Symbols starting with the prefix Rte_ will be skipped.
The list of reserved AUTOSAR prefixes is defined in the AUTOSAR standard. The list of prefixes used in the validation is:
Module short name |
Module abbreviation (API service prefix) |
|---|---|
ADC Driver |
Adc |
AUTOSAR Run-Time Interface |
Arti |
BSW Mode Manager |
BswM |
BSW Scheduler Module |
SchM |
Bulk NvData Manager |
BndM |
Bus Mirroring |
Mirror |
CAN Driver |
Can |
CAN Interface |
CanIf |
CAN Network Management |
CanNm |
CAN State Manager |
CanSM |
CAN Transceiver Driver |
CanTrcv |
CAN Transport Layer |
CanTp |
CAN XL Driver |
CanXL |
CAN XL Transceiver Driver |
CanXLTrcv |
CellularV2X Driver |
CV2x |
Charging Manager |
ChrgM |
Chinese Vehicle-2-X Management |
CnV2xM |
Chinese Vehicle-2-X Message |
CnV2xMsg |
Chinese Vehicle-2-X Network |
CnV2xNet |
Chinese Vehicle-2-X Security |
CnV2xSec |
COM |
Com |
COM Based Transformer |
ComXf |
COM Manager |
ComM |
Complex Drivers |
no prefix (AUTOSAR interface) |
Core Test |
CorTst |
Crypto Driver |
Crypto |
Crypto Interface |
CryIf |
Crypto Service Manager |
Csm |
Data Distribution Service |
Dds |
Default Error Tracer |
Det |
Diagnostic Communication Manager |
Dcm |
Diagnostic Event Manager |
Dem |
Diagnostic Log and Trace |
Dlt |
Diagnostic over IP |
DoIP |
DIO Driver |
Dio |
E2E Transformer |
E2EXf |
ECU State Manager |
EcuM |
EEPROM Abstraction |
Ea |
EEPROM Driver |
Eep |
Ethernet Driver |
Eth |
Ethernet Interface |
EthIf |
Ethernet State Manager |
EthSM |
Ethernet Switch Driver |
EthSwt |
Ethernet Transceiver Driver |
EthTrcv |
Firewall |
Fw |
Flash Driver |
Fls |
Flash EEPROM Emulation |
Fee |
Flash Test |
FlsTst |
FlexRay AUTOSAR Transport Layer |
FrArTp |
FlexRay Driver |
Fr |
FlexRay Interface |
FrIf |
FlexRay ISO Transport Layer |
FrTp |
FlexRay Network Management |
FrNm |
FlexRay State Manager |
FrSM |
FlexRay Transceiver Driver |
FrTrcv |
Function Inhibition Manager |
FiM |
GPT Driver |
Gpt |
HW Test Manager |
HTMSS |
ICU Driver |
Icu |
IEEE1722 Transport Layer |
IEEE1722Tp |
Intrusion Detection System |
IdsM |
IPDU Multiplexer |
IpduM |
Key Manager |
KeyM |
Large Data COM |
LdCom |
LIN Driver |
Lin |
LIN Interface |
LinIf |
LIN State Manager |
LinSM |
LIN Transceiver Driver |
LinTrcv |
LSDU Router |
LSduR |
MACsec Key Agreement |
Mka |
MCU Driver |
Mcu |
Memory Abstraction Interface |
MemIf |
Memory Access |
MemAcc |
Memory Driver |
Mem |
Network Management Interface |
Nm |
NVRAM Manager |
NvM |
OCU Driver |
Ocu |
OS |
Os (not used as API prefix) |
PDU Router |
PduR |
Port Driver |
Port |
PWM Driver |
Pwm |
RAM Test |
RamTst |
RTE |
Rte |
SAE J1939 Diagnostic Communication Manager |
J1939Dcm |
SAE J1939 Network Management |
J1939Nm |
SAE J1939 Request Manager |
J1939Rm |
SAE J1939 Transport Layer |
J1939Tp |
Secure Onboard Communication |
SecOC |
Service Discovery |
Sd |
Socket Adaptor |
SoAd |
Software Cluster Connection |
SwCluC |
SOME/IP Transformer |
SomeIpXf |
SOME/IP Transport Protocol |
SomeIpTp |
SPI Handler Driver |
Spi |
Synchronized Time-Base Manager |
StbM |
TCP/IP Stack |
TcpIp |
Time Service |
Tm |
Time Sync Over CAN |
CanTSyn |
Time Sync Over Ethernet |
EthTSyn |
Time Sync Over FlexRay |
FrTSyn |
TTCAN Driver |
Ttcan |
TTCAN Interface |
TtcanIf |
UDP Network Management |
UdpNm |
V2X Data Manager |
V2xDM |
Vehicle-2-X Basic Transport |
V2xBtp |
Vehicle-2-X Facilities |
V2xFac |
Vehicle-2-X GeoNetworking |
V2xGn |
Vehicle-2-X Management |
V2xM |
Watchdog Driver |
Wdg |
Watchdog Interface |
WdgIf |
Watchdog Manager |
WdgM |
Wireless Ethernet Driver |
WEth |
Wireless Ethernet Transceiver Driver |
WEthTrcv |
XCP |
Xcp |
BFx Library |
Bfx |
BSWMulticore Library |
Bmc |
CRC Library |
Crc |
E2E Library |
E2E |
EFx Library |
Efx |
IFl Library |
Ifl |
IFx Library |
Ifx |
MFl Library |
Mfl |
MFx Library |
Mfx |
Communication Stack Types |
Comtype |
Memory Mapping |
MemMap |
Platform Types |
Platform |
Standard Types |
Std |
Rule Id |
ETAS_RTACAR_SM_GEN_031 |
|---|---|
Title |
Prefixes of the reserved AUTOSAR namespaces must not be used for software module symbols. |
Description |
This rule verifies that functions, function like macros, variables, types and constants defined into software module or component do not use AUTOSAR reserved prefixes. |
Message Description¶
Id |
id_000 |
Message |
The rule cannot be evaluated due to an internal exception during the analysis execution. Please refer to the log file for more detailed information. |
Kind |
Open |
Level |
None |
Description |
An internal exception occurred during the execution. This can happen if there are insufficient resources available on the host machine. For more details, please consult the RTA-SQF log file. |
How To Fix |
Restart the command to exclude any internal exceptions. Alternatively, please contact ETAS GmbH support for assistance. When reporting the error, include a sample configuration and command line that reproduces the issue. |
Id |
id_001 |
Message |
The binary file format is unsupported. |
Kind |
Review |
Level |
None |
Description |
The binary file is not in a well-formed ELF format. |
How To Fix |
The inspection of non-ELF files is not currently supported by the tool. Please manually review the artifact. |
Id |
id_002 |
Message |
The object file was inspect and fullfil the AoU. |
Kind |
Pass |
Level |
None |
Description |
The object file has been inspected and it does not violate the AoU. |
How To Fix |
Everything is in order. No action is required. |
Id |
id_003 |
Message |
The object file is skipped, because it is assumed to be part of RTA-CAR. Based on the file name which starts with a known AUTOSAR RTE, OS, BSW module name. |
Kind |
Pass |
Level |
None |
Description |
The binary file is skipped because it is assumed to be part of Autosar Basic Software Modules or libraries. |
How To Fix |
Everything is in order. No action is required. |
Id |
id_004 |
Message |
Usage of reserved namespace: ‘{0}’. Please rename. |
Kind |
Fail |
Level |
Error |
Description |
The analysis of the binary file found a symbol whose the name starts with a Autosar reserved prefix. |
How To Fix |
Please review the code and rename the symbol. |
