Zooming

To adapt the value or time axis ranges for the best representation of your data, MDA provides several zoom possibilities.

You can perform the following actions:

To define the zoom area

To see how you can zoom, synchronize, and scroll in instruments, watch our video Navigating in Instruments.

  1. Press either Ctrl and the left mouse button or just the right mouse button.

  2. While keeping the button pressed, move the cursor along a value axis or along the time axis.

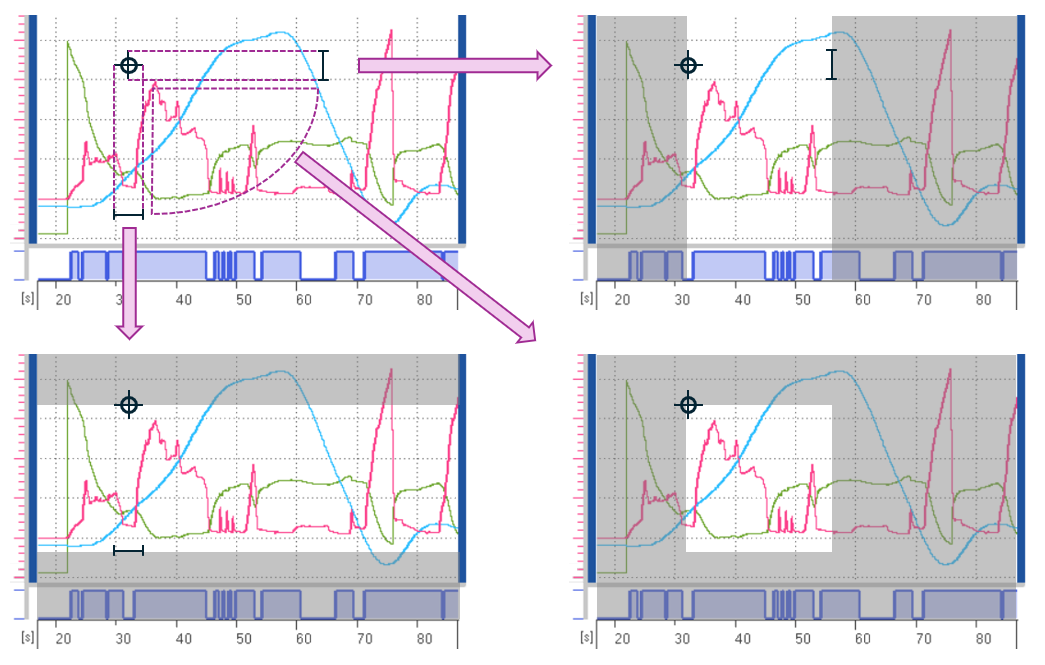

    Depending on the mouse movement, the zooming is performed as follows:

    • Time zoom (movement in horizontal corridor)

    • Value axis zoom (movement in vertical corridor)

    • Time zoom and value zoom (movement outside the corridors)

    The selected zoom area is highlighted.

    If you zoom in deeply, sample markersClosed Graphical elements which appear when individual measured value can be differentiated in an oscilloscope. are displayed. To change the appearance of the sample markers, see To define the appearance of the signal.

To show the full time range

If the time range is not completely displayed in the oscilloscope, the time axes can be adapted to show the full time range.

  1. Click .

      Alternatively, you can perform this operation by using the time slider. For more information, see To show the full time range of the measure file.

To zoom to fit signals

If a signal is not completely displayed in the oscilloscope stripClosed Part within an oscilloscope which its own y axes and signal assignment. All strips of an oscilloscope share the same x axis., the value axis can be adapted to show the complete value range. Do one of the following:

  1. To adapt selected signals, right-click the signals in the signal list or right-click the signal directly in the strip.

  2. In the context menu, click Zoom to fit Signal(s).

    or

  1. To adapt all signals of a selected strip or value axis specifically, right-click the strip or value axis.

  2. In the context menu, click Zoom to fit Signal(s).

    or

  1. To adapt all signals in all strips, click .
