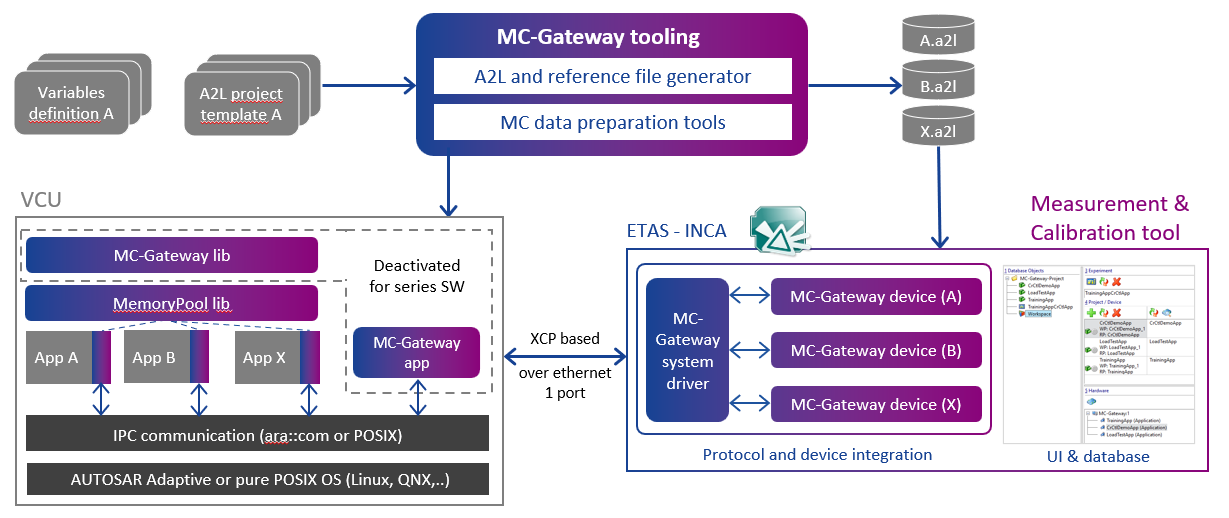

Architecture of the MC-Gateway
The requirements for modern VCUs are increasing. Therefore, many VCUs are equipped with a μP (microprocessor) instead of a μC (microcontroller).
The key functionality of the Measurement and Calibration Gateway (MC-Gateway) is the fast acquisition of measurement signals and optimization of calibration data of AUTOSAR Adaptive user apps running on a uP-based VCU.
It supports the two-page approach for calibration (Working Page and Reference Page).
|
Note |
|---|
|
In this User Guide, the ETAS software INCA is used to describe the measurement and calibration (M/C) possibilities together with the MC-Gateway. |
