Filtering the Display of Variables by Quality Meta Data States

In the Calibration Data Manager, you can filter the display of variables in the Variables (& functions) to process list by quality meta data.

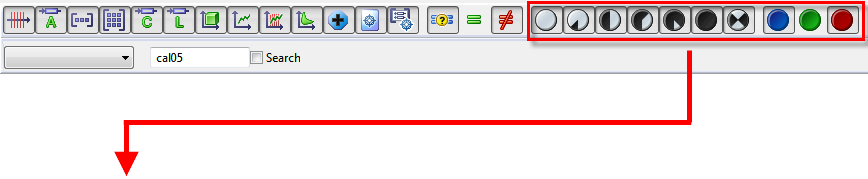

There you can use the following toolbar icons to filter the display of variables by quality meta data:

Filter by quality state:

Select the corresponding state filter to hide/show variables with particular state values.

Filter by quality state comparison:

Select the corresponding filter to hide/show the variables whose quality state comparison is the same as or different from that of the active destination dataset.

blue: quality meta data values are not present in the destination dataset.

green: quality state is the same

red: quality states are different

Alternatively, you can select the filters from the menu: View - DisplayFilter.

Note
The List, Compare and Copy actions are performed irrespective of the display with all variables to be processed.
