Filtering the Display of Variables by Process Meta Data

In the Calibration Data Manager, you can filter the display of variables in the Variables (& functions) to process list by process meta data.

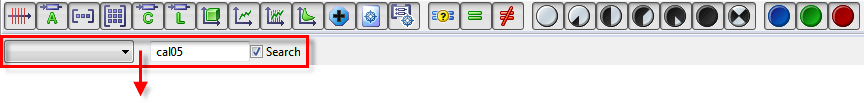

There you can use the following toolbar icons to filter the display of variables by process meta data:

Calibration methodology:

The combo-box lists all calibration methods. Selecting one value will filter the calibration variables for all those with the selected method.

Calibration behavior:

Enter any text in the entry field; this will filter the calibration variables for all those containing the search string in the calibration behavior comment. The result list is updated immediately while typing.
With the checkbox next to the Search button, you can activate and deactivate the filter for the calibration behavior.

Note
The List, Compare and Copy actions are performed irrespective of the display with all variables to be processed.
