ES9xx
The Rapid Prototyping hardware of the ES9xx family provide Ethernet, ECU, and bus interfaces. The base units of the family are the ES910 modules. Additional interfaces can be added by means of extension modules.
All members of the ES9xx family are supported by INCA. The support of the ES9xx modules is included in the INCA base system.
ES9xx Network

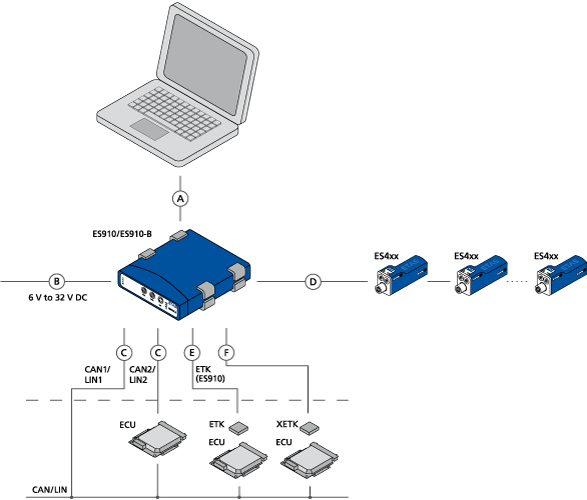

The following graphic shows an example topology of a network with ES9xx modules
An ES910 Rapid Prototyping Module connects ECUs and vehicle buses to host application.
