Changing the Size of a Frame

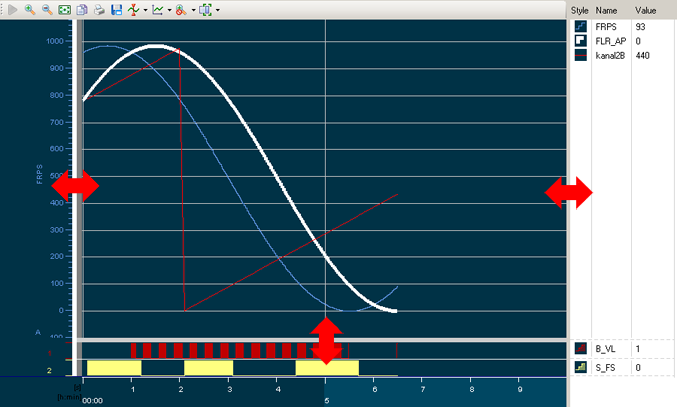

The various oscilloscope frames for displaying the axes, the signal curves, the analog and digital areas, as well as the signal list are bound by different movable bars.
To change the size of a frame:
- Drag the bar bordering the frame in the desired direction with a pressed mouse button.
For axes or signal lists, alternatively double-click on the bar to automatically adjust the frame size to the content.
Note
Frames can be increased or decreased as desired. They can be completely covered up. By dragging the corresponding bar, you can make it visible again.
