AUTOSAR - Generate AuthInfo Signal (SP2)

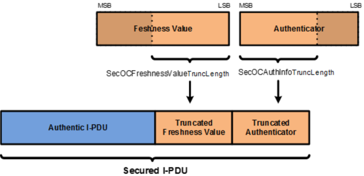

A Secured I-PDU of SecOC communication consist of an optional Secured I-PDU Header and an Authentic I-PDU followed by the optional Freshness Value and the Authenticator.
This data can now be measured with INCA by providing additional scalar measurement signals for Authentication Information based on the AUTOSAR description file supporting AUTOSAR 4.3.0 or higher.
The functionality is available for CAN , Ethernet, and FlexRay Monitoring.
The new signals have the postfix _AuthInfo.
