INCA-Bus-Logging Add-On
You can install the INCA-Bus-Logging Add-On as an alternative to the ETAS CAN-Trace engineering AddOn .
First Features

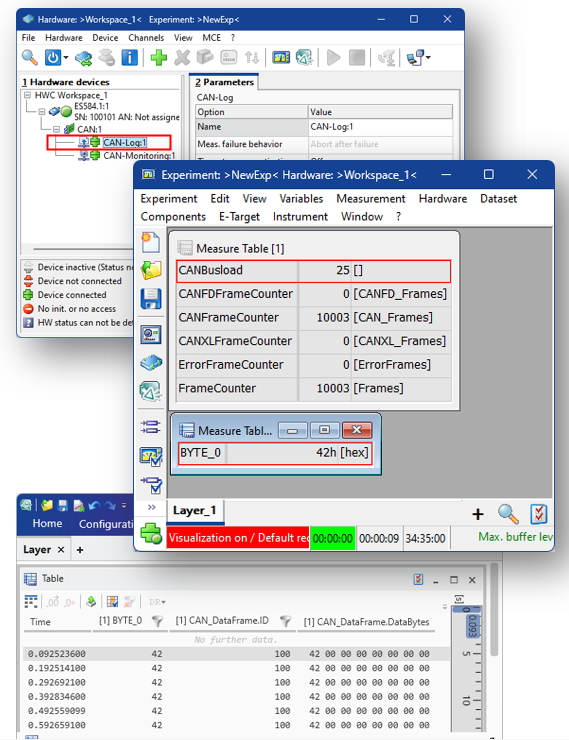

CAN /CAN FD Tracing
Time-synchronous recording of signals and frames into the same MDF 4.x file
Assignment of statistic signals, for example CANBusload, to a recorder with implicit addition of CAN_DataFrame and CAN_ErrorFrame
Converter
The INCA-Bus-Logging Add-On additionally includes a converter that reads MDF files and writes CAN traces into an ASC file.
Ethernet Tracing
Time-synchronous recording of signals and frames into the same MDF 4.x file

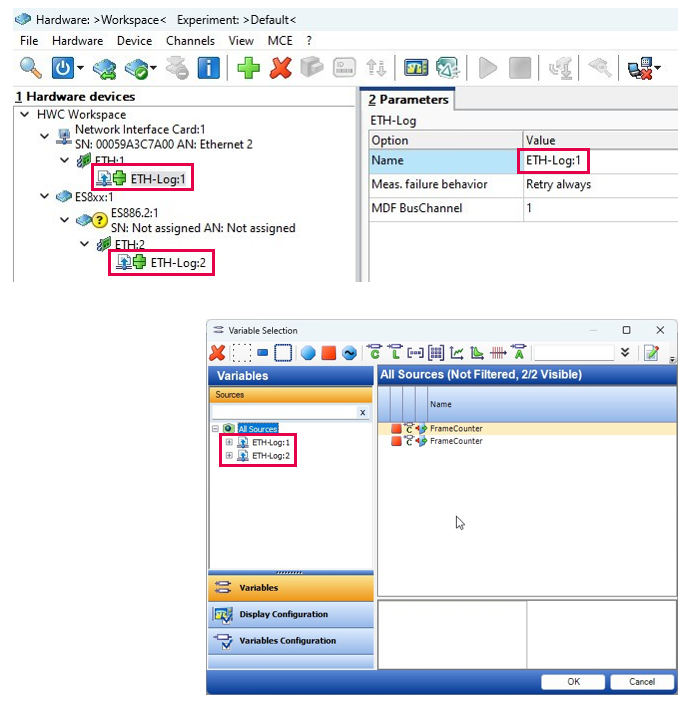

New ETH-Log device in HWC below NIC and ES886
Further Ethernet devices will be supported later

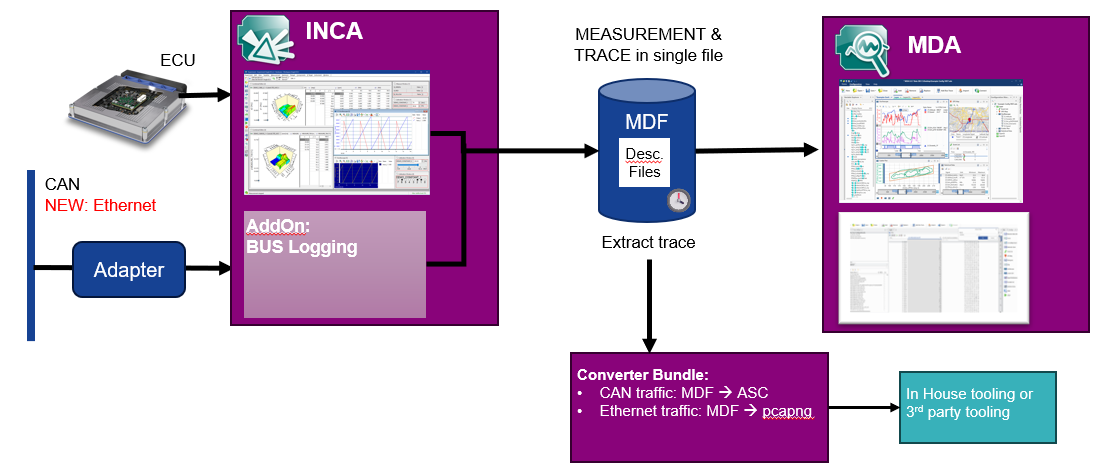

INCA writes Ethernet traces in parallel to other measurement data in MDF
Use case: FrameCounter signal needs to be configured for a recorder to activate Ethernet bus logging to MDF
