Product Overview

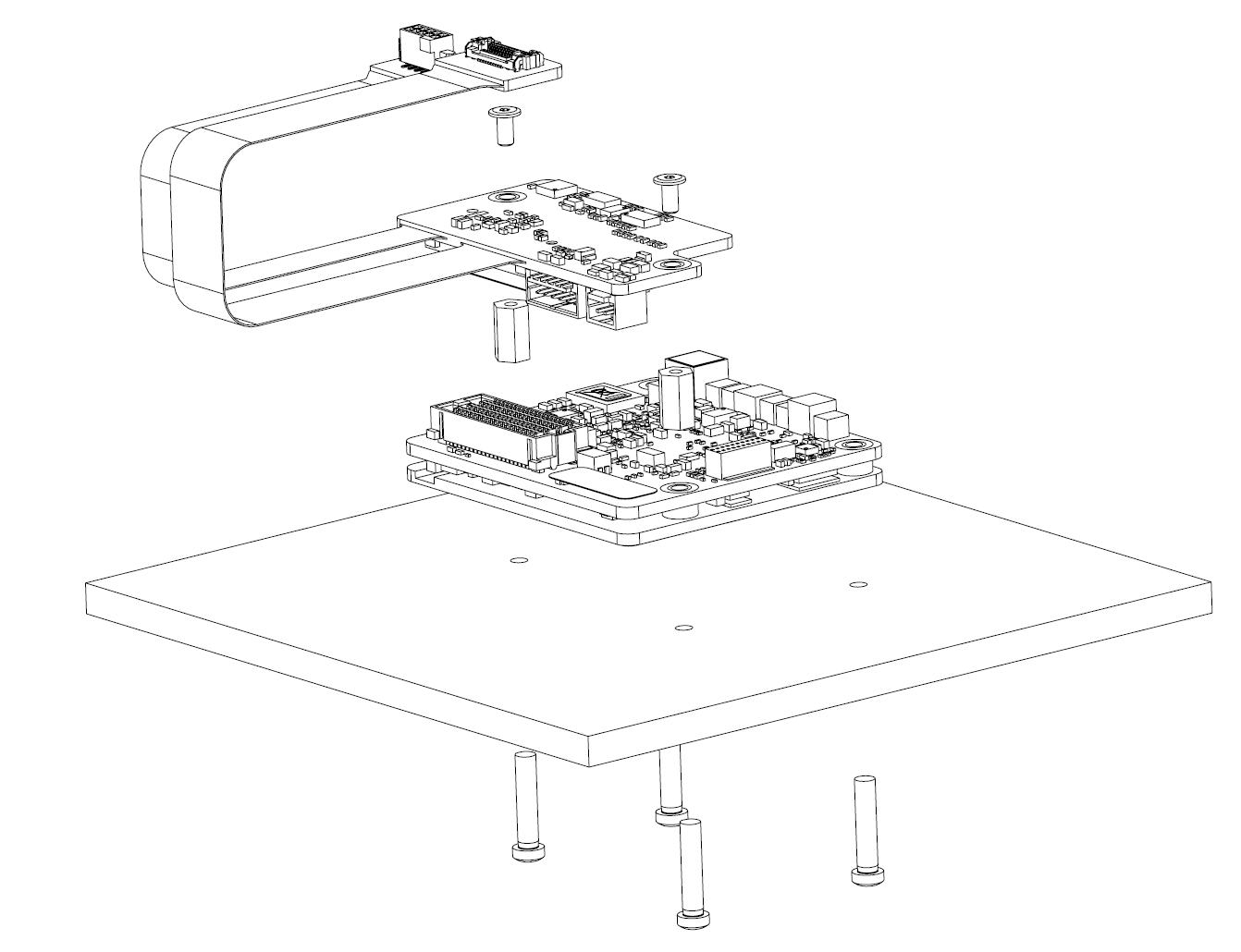

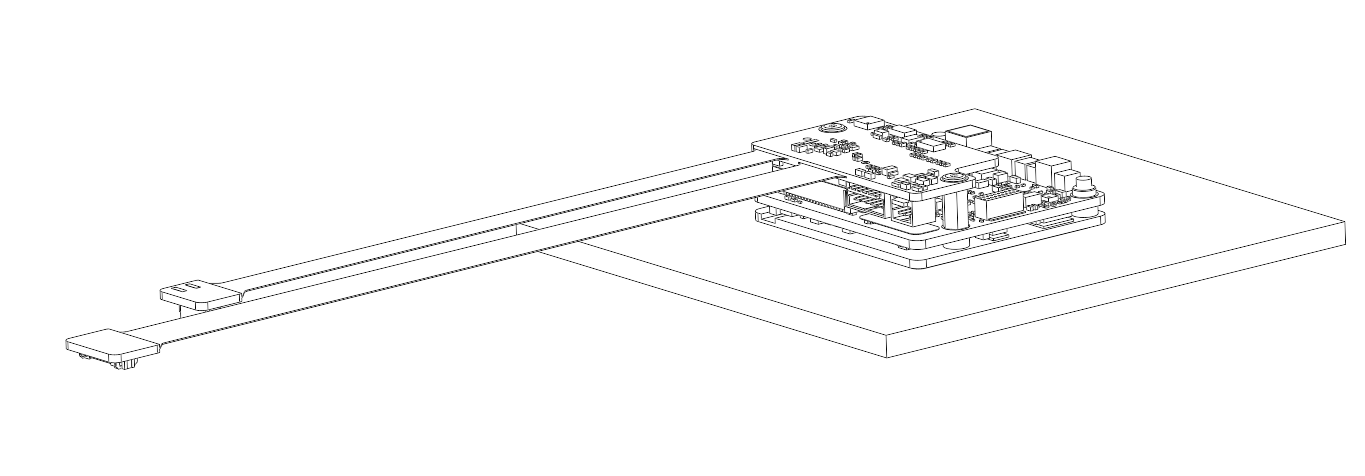

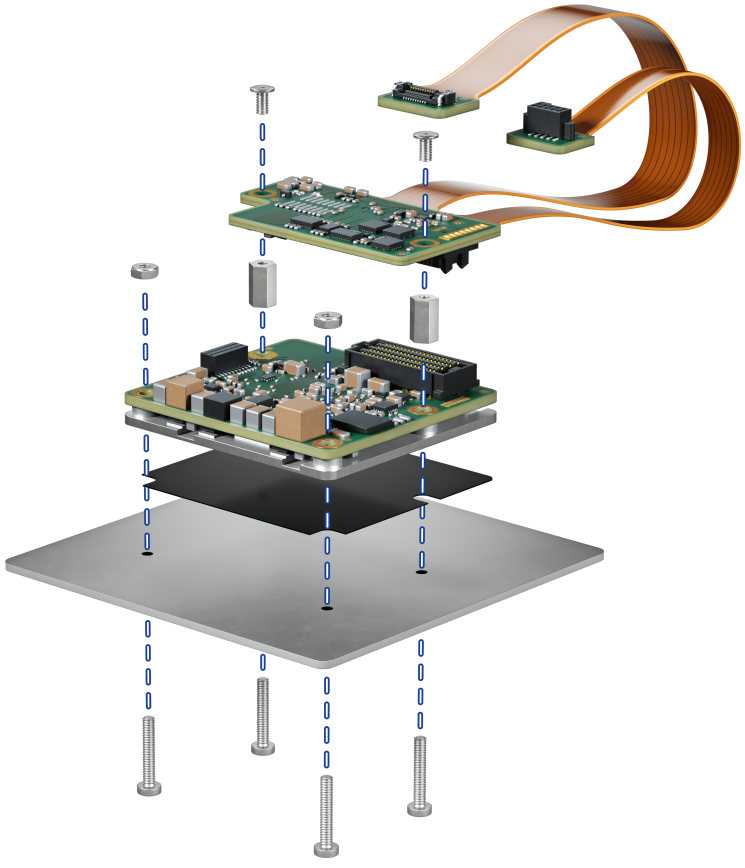

Graphical overview of elements

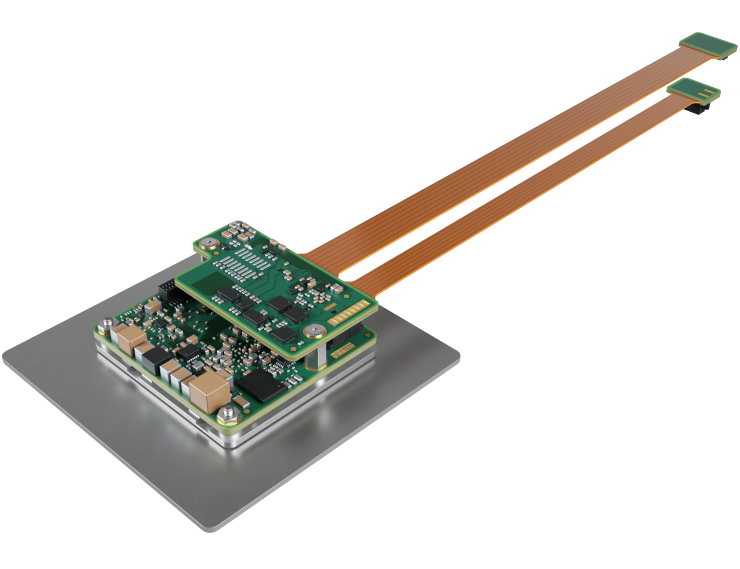

The M-ETK system includes:

  • M-ETK Device: The core hardware unit to be used with the M-ETK Adapterboard and the required SW Service Pack.

  • µC Specific Base License: Essential software component dedicated to specific microcontroller families.

  • M-ETK Adapterboard: Provides the specific hardware interfaces of the ECU, the XCP interface connection and the power supply of the emulation device.

  • Feature Licenses (Example): M-ETK Feature License Trace2PIN: Support of AURORA Trace interface

For more technical data on the M-ETK see the chapter Technical specifications.

Licensing

The M-ETK provides a feature licensing approach.

  • Feature Upgrades: Additional features can be added at any time during the maintenance period of the device.

  • License Management: A web portal allows customers to manage their licenses and bind them to a specific HW device.

Configuration

The configuration of the M-ETK can be done directly with INCA or by using the XCT tool provided by ETAS.

INCA Configuration

  • This configuration is designed to work seamlessly with ETAS INCA (Integrated Calibration and Application Tool) and is designed for optimized functionality.

XCT Configuration

  • XCT (X-ETK Configuration Tool) configures the ETK to use the standardized XCP (Universal Measurement and Calibration Protocol) on Ethernet.

  • This configuration allows the M-ETK to communicate with third-party tools, that supports the XCP standard.
