CBEB130 (Automotive Ethernet)
Usage
|
Note |
|---|
|
It is recommended for safety reasons to connect the external permanent voltage and the switched voltage inside the ECU! |

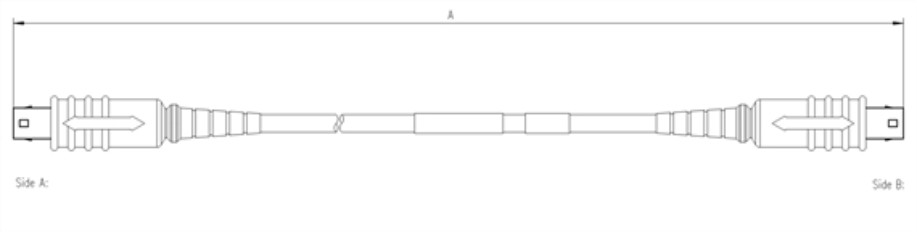

Mechanical Dimensions
For thin walled housings, use a through boring with 12.2 mm in the housing and mount the cable with a nut (not included) (Ordernumber 8000.12 from AGRO).
For wall thickness more than 2.5mm cut a thread into the housing.
Connectors and Positions
|
LEMO-Socket |
LEMO-Socket |
|
LEMO FGI.1B.512.CTA |
|
|
View to solder side |
View to solder side |
|
Side A |
Side B |
|
Pin: Label |
Pin: Label |
|
Housing: Shield |
|
|
1: BR+ |
1: BR+ |
|
6: BR- |
6: BR- |
Temperature Range
|
Condition |
Temperature Range |
|
Operating temperature |
-40 °C to +110 °C |
Order Information
|
Order Name |
Short Name |
Length [m] |
Order Number |
|
1000Base-T1 Automotive Ethernet Cable for M-ETK, Lemo 1B PHI - Lemo 1B FGI (7mc-7mc), 3m |
CBEB130.1-3 |
3 |
F 00K 117 319 |
|
1000Base-T1 Automotive Ethernet Cable for M-ETK, Lemo 1B PHI - Lemo 1B FGI (7mc-7mc), 8m |
CBEB130.1-8 |
8 |
F 00K 117 320 |
