CBAM435 (Automotive Ethernet)
Usage
|
Note |
|---|
|
It is recommended for safety reasons to connect the external permanent voltage and the switched voltage inside the ECU! |

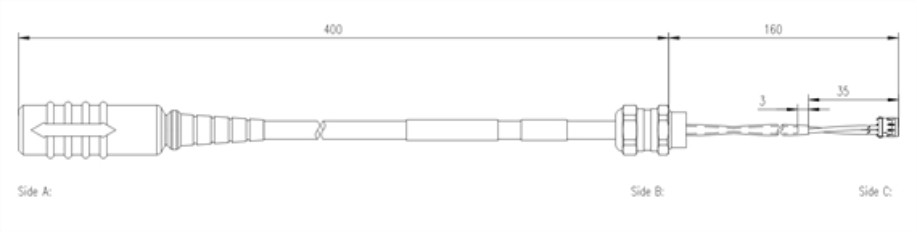

Mechanical Dimensions
For thin walled housings, use a through boring with 10.2 mm in the housing and mount the cable with a nut (not included) (Ordernumber 8000.10.1 from AGRO).
For wall thickness more than 2.5 mm cut a thread into the housing.
Connectors and Positions
|
LEMO-Socket |
AGRO Cable Gland |
Molex Pico-SPOX |
|
Messing 1080.12.91.075 |
Receptacle housing: 87439-0300 |
|
|
View to solder side |
|
|
|
Side A |
Side D |
|
|
Pin: |
|
|
|
Housing: Shield |
Housing: Shield |
|
|
1: BR+ |
|
|
|
6: BR- |
|
|
Temperature Range
|
Condition |
Temperature Range |
|
Operating temperature |
-40 °C to +110 °C |
Order Information
|
Order Name |
Short Name |
Length [m] |
Order Number |
|
M-ETK ECU Adapter Cable, pre-assembled into M10 screwing, shield on ECU-Housing, Lemo 1B PHI - MOLEX (7fc-3fc), 0m60 |
CBAM435.1-0m6 |
0.6 |
F 00K 117 318 |
