CBAM350 Cable
Usage
The CBAM350.1-0 FETK interface cable (reused by FETK) is a 1 GBit/s cable adapter with a water tight socket. The cable shield is connected to socket. It is usable for ECUs with shielded housing.
Panel Cut-Out
Assembling

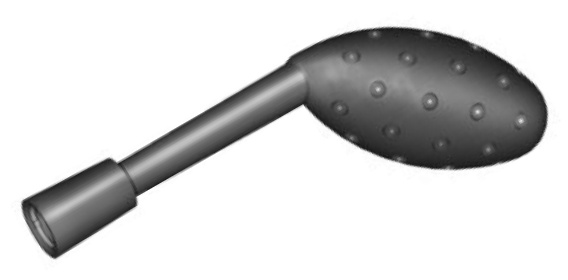

A Lemo tool, type “Lemo Spanner DCH.91.161.PA” is needed for assembling the connector (not included in the delivery).
|
Note |
|---|
|
The Lemo Spanner DCH.91.161.PA is not included in the cable delivery, It need to be ordered separately. For detailed information on mounting accessories contact ETAS technical support. |
Temperature Range
|
Condition |
Temperature Range |
|
Operating temperature |
-40 °C to +125 °C |
Order Information
|
Product |
Length |
Order Number |
|
CBAM350.1-0m17 |
0.17 m |
F 00K 111 439 |
