CBAM300 Cable
Usage
The FETK ECU interface cable CBAM300.3 (reused by FETK) is pre-assembled into PG9 screwing, with a connected shield on screwing:
-
For thin walled housings, use a through boring with 15.2 mm in the housing and mount the cable with a nut (not included) (SM-PE 9 order number 52103210 from Lapp).
-
-For wall thickness more than 4 mm cut a thread into the housing.

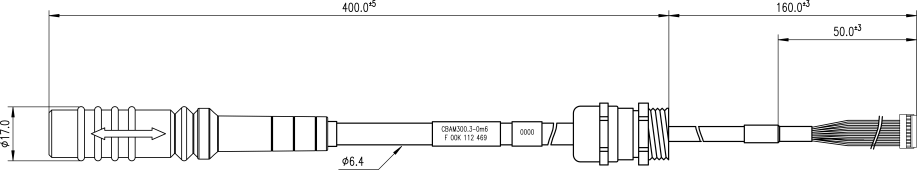

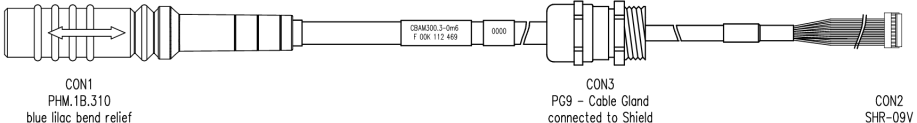

Connectors
|
Connector |
Color |
Target |
|---|---|---|
|
CON1 |
Blue purple |
GBit Ethernet cable, e.g. CBE260 |
|
CON2 |
White |
FETK |
|
CON3 |
- |
Shield ECU housing |
Temperature Range
|
Condition |
Temperature Range |
|
Operating temperature |
-40 °C to +125 °C |
Tightness
|
Condition |
IP Code |
|
PG9 screwing |
IP67 |
Order Information
|
Product |
Length |
Order Number |
|
CBAM300.3-0m6 |
0.6 m |
F 00K 112 469 |
