Graphical overview of elements

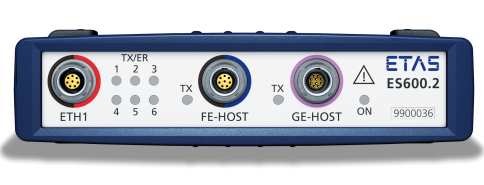

Front side
|
Fig. |
Connection |
Description |
|---|---|---|
| ETH1 |
LEMO 1B |
Fast Ethernet downstream connection with integrated power supply and SYNC-OUT |
| FE-HOST |
LEMO 1B |
Fast Ethernet upstream host connection with SYNC-IN |
| GE-HOST |
LEMO 1B |
Gigabit Ethernet upstream host connection |

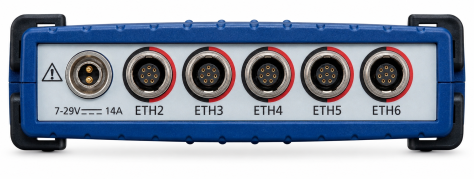

Rear side
|
Fig. |
Connection |
Description |
|---|---|---|
|
7-29 V DC |
Power supply |
Operating voltage connection |
|
ETH2 - ETH6 |
LEMO 1B |
Fast Ethernet downstream connection with integrated power supply and SYNC-OUT |
