About ES600.2 - Module

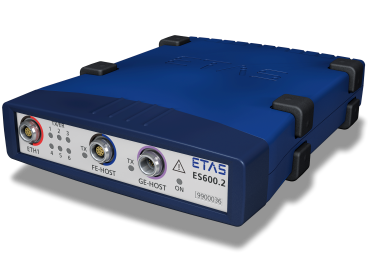

The ES600.2 Synchronization and Power Management Module is an Ethernet switch with integrated voltage supply and time synchronization for connecting several data acquisition or interface modules to a host PC.

The module is equipped with two upstream Ethernet connections for data exchange with the host PC or a drive recorder and six downstream Ethernet connections for connecting ETAS modules and compatible Ethernet-enabled devices.

The ES600.2 can be cascaded so that larger module compounds can be built.

Scope of application

The ES600.2 can be used for the following tasks:

  • Connecting several data acquisition or interface modules to a host PC via Ethernet

  • Supplying connected ES4xx and ES6xx modules with power via the Ethernet connection cable

  • Synchronizing connected ETAS modules and their measuring channels

  • Connecting ECUs that are equipped with an XETK or a separate Ethernet interface

  • Building larger cascaded module compounds with additional ES600.2 modules

Properties

The most important properties at a glance:

  • Ethernet switch with 10/100/1000 Mbit/s data rate
  • One upstream Gigabit Ethernet host connection (GE-host)
  • One upstream Fast Ethernet host connection (FE-host)
  • Six downstream Fast Ethernet connections for compatible modules (ETH1 to ETH6)
  • Status indicator for every connection
  • Sequential switch-on of connected modules to avoid high start-up peaks
  • Automatic standby function for connected modules
  • Precise synchronization of all connected modules and their measuring channels
  • Automotive-capable module for use in the development environment and in the vehicle on test courses
  • Wide supply voltage range
  • High level of mechanical stability and robustness
