Connection with other products
|
NOTICE |
|---|
|
Damage to the electronics due to potential equalization The cables' shield may be connected to the housing, the ground or the ground for the product's power supply. If there are different ground potentials in the test setup, equalizing currents can flow between the products via the cables' shield. |
|
Note |
|---|
|
Ensure that the test setup is EMC-compliant. A test setup that uses shielded and unshielded components at the same time can lead to impairment of the signal quality and is not recommended by ETAS. |
|
Note |
|---|
|
Please ensure that the device is installed and operated as described in the user manual to maintain the specified EMC properties in the respective application. Deviation from the specified installation and operation instructions or connecting the device with other devices may result in a deviation from the specified EMC properties. |

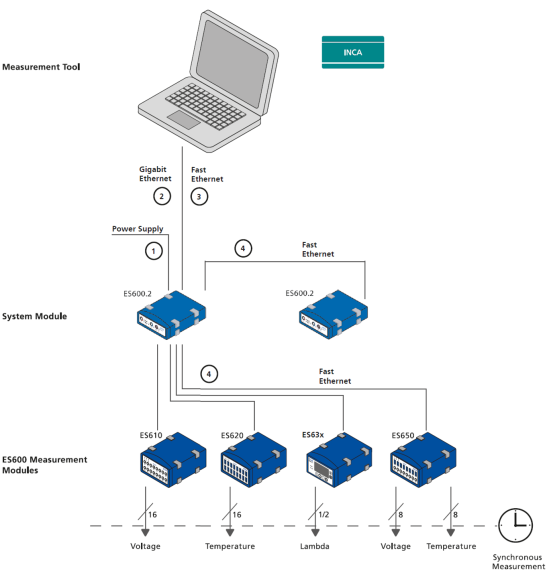

The ES600.2 is designed to connect to measurement modules, a Gigabit Ethernet host, a Fast Ethernet host and an external power supply.
|
Fig. |
Function |
Short name |
|---|---|---|
|
1 |
Connection to power supply |
CBP120 |
|
CBP1205 |
||
|
2 |
Connection to Gigabit Ethernet host |
CBE250 |
|
3 |
Connection to Fast Ethernet host |
CBE100 |
|
4 |
Connection to Ethernet interface ETH1 -6 |
CBE130 |
|
CBE140 |
