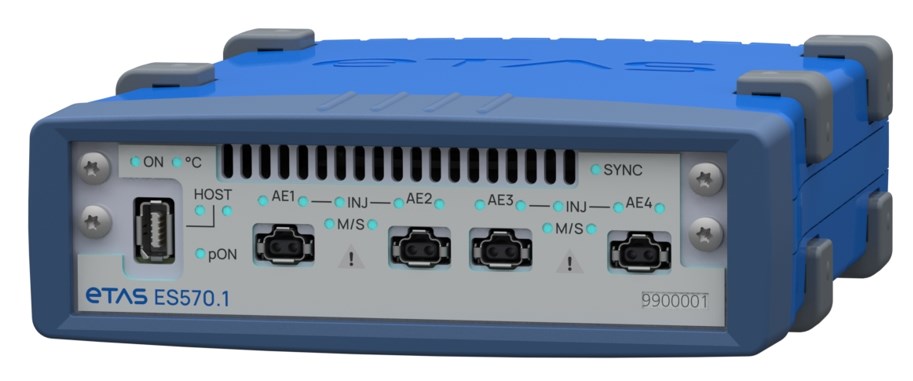

Graphical overview of elements

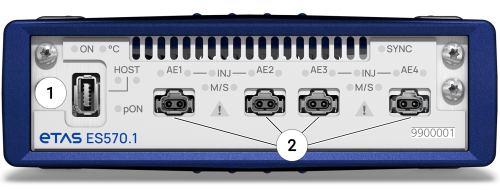

Fig. 1: Connections ES570.1
|
Fig. 1 |
Connection |
Description |
|---|---|---|
|
1x |
Ethernet |
1000BaseT / 2500BaseT Gigabit Host iX industrial connector |
|
4x |
Automotive Ethernet |
100Base-T1 / 1000Base-T1, Gigabit AE T1 connectors |
