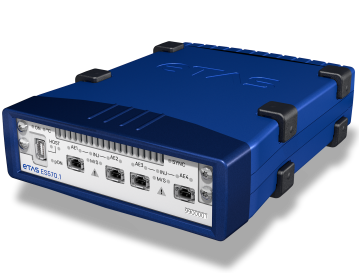

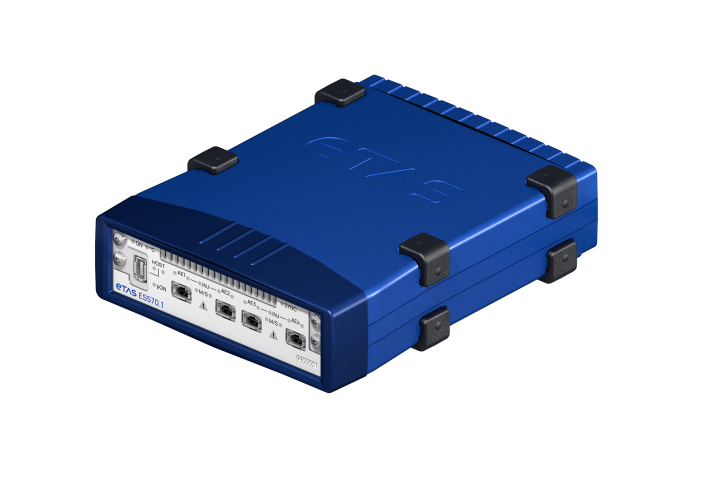

The module ES570.1 is equipped with four Gigabit Automotive Ethernet interfaces. It also has a 2.5 Gigabit Ethernet interface to the PC. The module can be connected to the following products, among others:

• Other ETAS devices with Automotive Ethernet interface such as BR_XETK

• Access to the vehicle network, such as ECUs with Automotive Ethernet interface

• Direct access to the Automotive Ethernet interface in the vehicle network (TAPing)

The ES570.1 can be used for the following tasks:

• Connection to other ETAS devices with Automotive Ethernet interface such as BR_XETK for measurement and calibration tasks

• Access to the vehicle network via automotive Ethernet interface for monitoring applications and/or application for protocol communication

The most important properties at a glance:

• Simpler configuration for easy measurement setup
• AE interface speeds of 100Base-T1 or 1000Base-T1
• Host interface supports 1000BaseT and 2500BaseT standard Ethernet
• High-precision time synchronization with ETAS devices using IEEE1588
• TAPing module with integrated relays ensures communication even when switched off
• TAPing module supports IEEE802.1as in the vehicle network
• Internationally standardized connectors
• High mechanical stability and ruggedness
