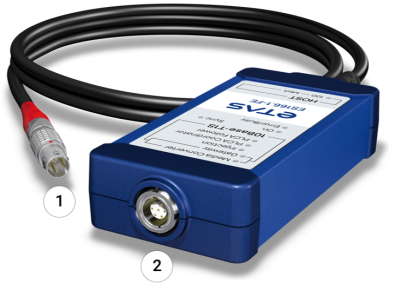

Graphical overview of elements
|
Fig. |
Connection |
Description |
|---|---|---|
|
1 |
LEMO 1B |
Combined connection for power supply and 10/100 BASE-T Ethernet (IEEE 802.3) via connected ETAS module (e.g. ES5xx, ES600.2 and ES8xx) |
|
2 |
LEMO 1B |
10Base-T1S automotive ethernet connection |
