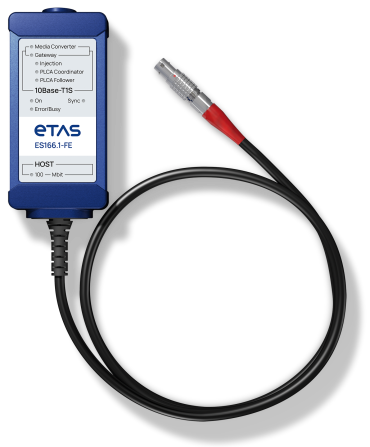

About ES166.1 - 10Base-T1S Automotive Ethernet Device

The ES166.1 works as either a gateway or a media converter for a 10Base-T1s network. The gateway mode supports multi-drop 10Base-T1S networks and can either send or receive frames in the network. In the media converter mode, the device acts as a transperant media converter, converting ethernet frames from the 10Base-T1S into Standard Ethernet format (IEEE 802.3). The communication speed of the ES166.1-FE on the host side is limited to a maximum of 100Mbit/s.

Scope of Application

The ES166.1 can be used for the following tasks:

  • Recording and capturing of communication data as well as calibration of ECUs

  • ECU diagnostics

Properties

The most important properties of the ES166.1 Media Converter:

  • Active participation (Tx and Rx) of 10Base-T1S frames in a multi-drop network in gateway mode
  • Conversion of 10Base-T1S into standard ethernet in media converter mode
  • Automotive-capable product that is suitable for use in the development environment and in the vehicle on test courses
    • Adaptable to ambient conditions (temperature, EMC)
    • Wide supply voltage range
    • High level of mechanical stability and robustness
  • Display of the operating state and fault state
  • Fast ethernet port to connect to existing ETAS devices
  • Standby operation
  • Firmware updates via Hardware Service Pack (HSP)
  • No additional drivers required
